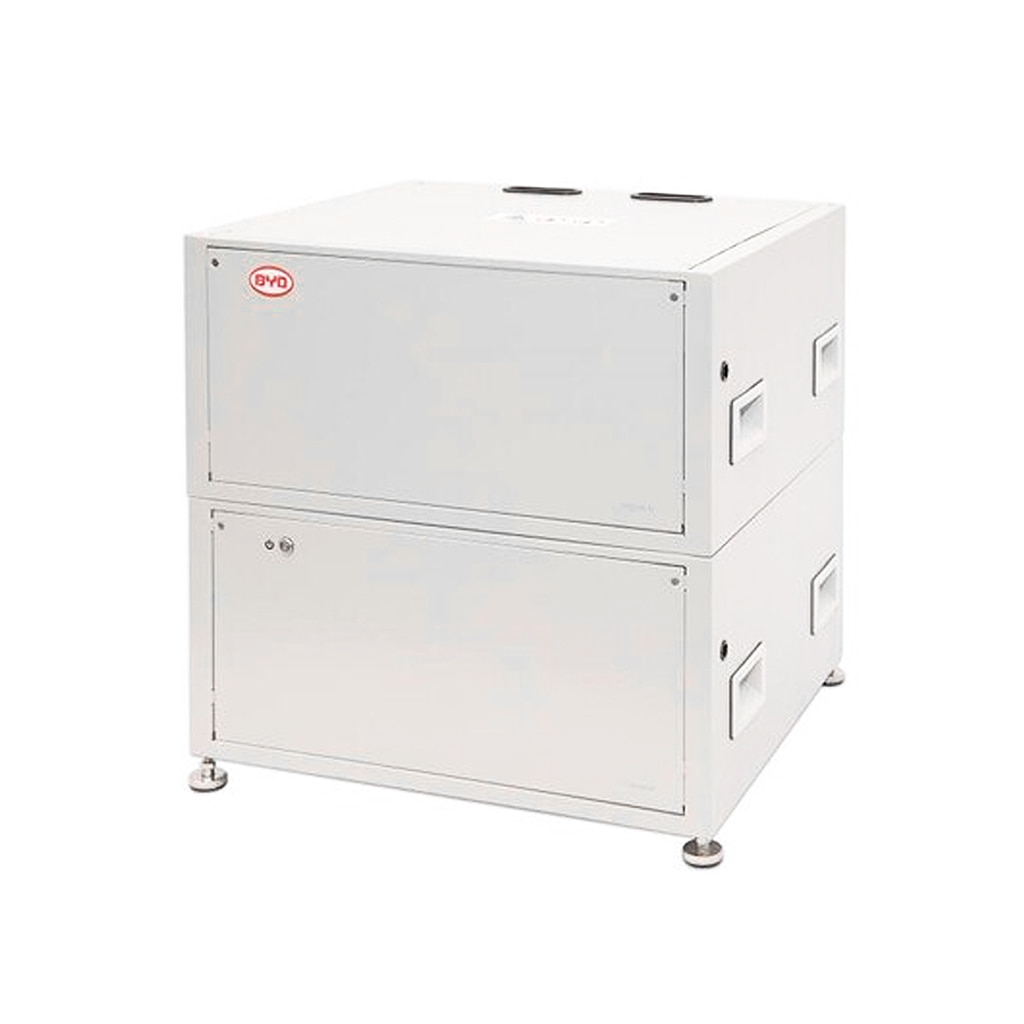

BYD Battery-Box Premium LVL 15.4
[LIT0534] BYD Battery-Box Premium LVL 15.4
Battery-Box Premium LVL 15.4 módulo de batería de litio.
Requiere de BMU (LIT0518).
Compatible con inversores Victron y SMA.
Marca: BYD |
Nombre de la serie: Battery-Box Premium LVL |
Capacidad de almacenamiento de energía (kWh): 15,4 |
Nombre mostrado:
[LIT0534] BYD Battery-Box Premium LVL 15.4
Código HS:
85076000
- 01 Ficha técnica BYD Battery-Box Premium LVL [DE]
- 01 Ficha técnica BYD Battery-Box Premium LVL [ES]
- 02 Guia configuración app Be connect BYD B-Box Premium LVL [EN]
- 02 Manual BYD Battery-Box Premium LVL [EN]
- 03 MSDS BYD B-Box Premium LVL [EN]
- 04 Certificado BYD EN 61000 [EN]
- 04 Certificado BYD IEC 62040 [EN]
- 04 Certificado BYD IEC 62619 [EN]
- 04 Certificado BYD MSDS [EN]
- 04 Certificado BYD UN38.3 [EN]
- 04 Lista de inversores compatibles BYD B-Box Premium LVL [EN]
- 04 Lista de inversores compatibles BYD Battery-Box Premium LVL [EN]
BYD BATTERY-BOX PREMIUM LVL
Storage capacity: 15.4 kWh
Expandable system from 15.4 to 983 kWh
Compatible with single-phase and three-phase inverters
Cobalt-free lithium iron phosphate (LFP) battery: maximum safety, durability and performance
Perfect for backup and off-grid systems.
Battery volume is reduced by 50%.
Space saving due to the possibility to stack 2 batteries Battery-Box LVL 15.4
Add more batteries in parallel at any time to expand the system. (Up to a maximum of 64 batteries, 983kWh)
B-Box PRO 13.8 vs Battery-Box LVL
![Odoo CMS - una imagen grande](/web/image/127648/byd-premium-battery-box-LVL-technosun.com_INFO.png?access_token=4f52030e-0ed8-471b-9cb4-f1c934b241f5)
The BYD Battery-Box Premium LVL is a lithium iron phosphate (LFP) battery for use with an external inverter.
The Premium LVL Battery can be scaled to meet all project requirements, no matter how large. Start with the Premium Battery-Box LVL15.4 (15.36 kWh) and combine it up to a maximum of 983 kWh by connecting up to 64 batteries in parallel.
![](/web/image/63985/byd1.png?access_token=ee7c55a7-a256-47ef-9a19-c99764f03d23)
Easy to install
A single cable
![](/web/image/63984/byd2.png?access_token=b7e4b407-b7d5-425f-b85f-d8f749ea519e)
Simple design
From 15.4kWh to 983kWh
![](/web/image/63983/byd3.png?access_token=65eace67-f421-4da3-8851-283051472775)
Easy to climb
It is prepared for any modification
Technical specifications of the Battery-Box Premium LVL
Battery-Box Premium LVL 15.4
Number of modules per battery: 2
Useful capacity [1]: 15.36 kWh
Output current [2]: 250A
Maximum output current [2]: 375A, 5s
Dimensions (H/W/D): 500 x 575 x 650 mm
Weight: 164 kg
Nominal voltage 51.2 V
Voltage range 40-59 V
Ambient temperature -10 °C to +50 °C
Cell technology Lithium iron phosphate battery (cobalt free) CAN/RS485 interfaces
Protection class: IP20
Battery efficiency: ≥95%
Parallel connection: Max. 64 in parallel (983 kWh)
Certification IEC62619 / CE / CEC / UN38.3
Applications: ON Grid (Grid connected / ON Grid + Backup (emergency/EPS) / OFF Grid (isolated)
Warranty period[3]: 10 years
Compatible inverters: See the compatibility list for BYD Battery-Box Premium inverters and the configuration list.
1] Usable DC capacity, test conditions: 100% DOD, load and unload 0.2C at +25°C; usable capacity depending on the inverter if required.
2] The power is reduced from -10 °C to +5 °C
3] BYD (BYD Battery-Box Premium Limited Warranty Letter) conditions apply.
