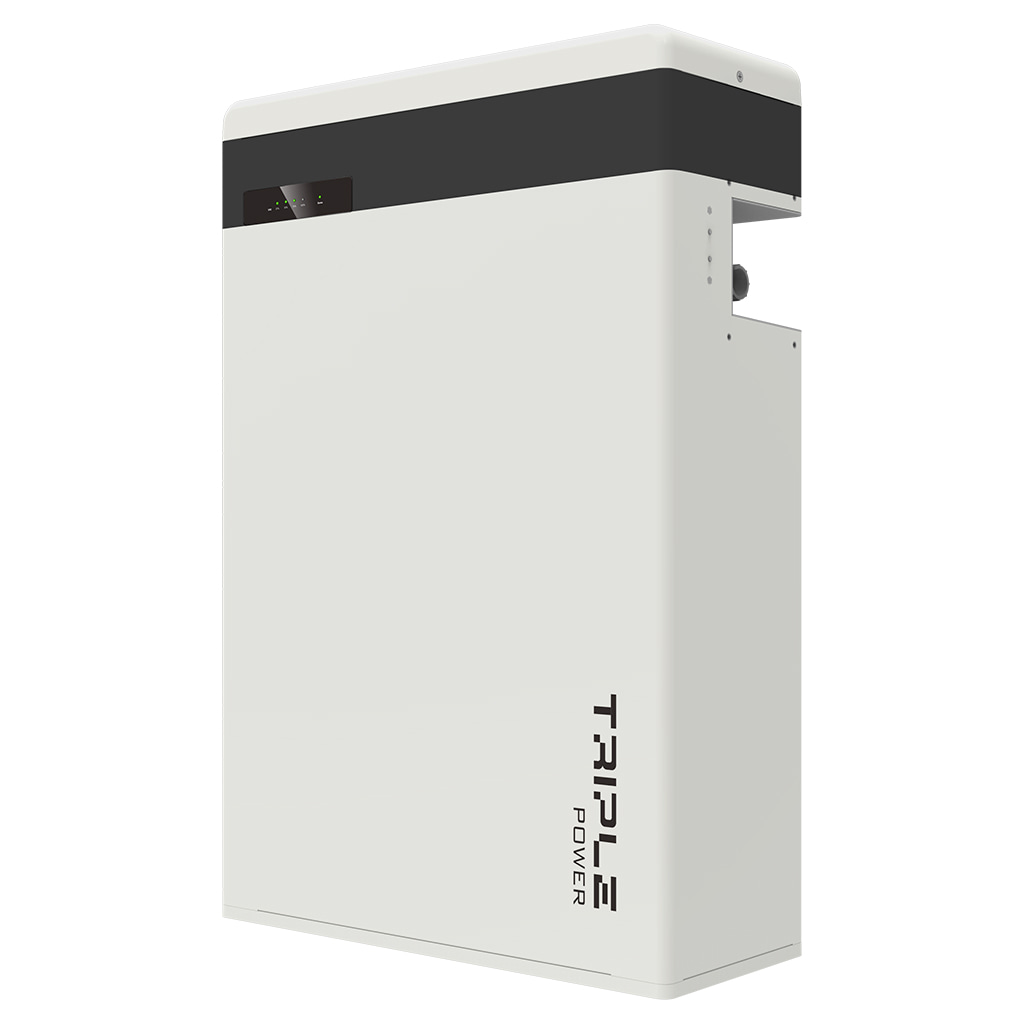

Solax Triple Power T58 5,8kWh HV Master V1
[BAT410] Solax Triple Power T58 5,8kWh HV Master V1
Batería de litio 5,8kWh | HV hasta 4 uds. en paralelo (23,2kWh)
Nombre mostrado:
[BAT410] Solax Triple Power T58 5,8kWh HV Master V1
Código HS:
85076000
T-BAT H 5.8
Triple Power 5,8kWh
Designed and manufactured in partnership with SolaX, Triple Power offers a NEW 5.8kWh model that can be installed in series with up to 4 batteries allowing 23.2kWh of storage. The new Triple Power encompasses the latest in LFP technology which ensures much safer installations with greater temperature tolerances. With a 10-year warranty and a 90% depth of discharge, the new Triple Power battery is a flexible, practical and high performance energy storage solution.
Translated with www.DeepL.com/Translator (free version)
Compatible with: X1-Hybrid, X1-Fit, X3-Hybrid, X3-Fit y X1-AC
The safest LiFePO4 battery
90% DOD (depth of discharge)
Life cycle >6000 cycles
Protection level IP55
Floor or wall installation
Quick installation
No toxic heavy metals or caustic materials
Crea un sistema de hasta 8 baterías con el Triple Power Parallel BMS
Gracias al Triple Power Parallel BMS es posible crear un sistema de baterías Triple Power T58 de SolaX para conectar hasta ocho de ellas a los inversores SolaX Hybrid X1 y SolaX Hybrid X3. Descubre la Triple Power Parallel BMS en su página de producto.
Specifications:
Electrical values:
Nominal voltage [V] :115.2
Operating voltage [V] : 100-131
Battery type: Li-on (LFP)
Nominal capacity [kWh]: 5.8
Usable capacity [kWh] : 5.2
Faradic load efficiency [%] : 99
Efficiency of the return battery [%] : 95
Standard power [kW] : 2.9
Maximum power [kW] : 4.0
Recommended load current [A] : 25
Maximum load/unload current [A] : 35
Life cycle [90% DOD] : >6000 Cycles
Warranty [Year] : 10
Environmental:
Available operating temperature range [℃]: 0 to 55
Operating temperature range at full load [℃]: 5 to 48
Humidity [%]: 4 to 100 (condensation)
Altitude [m] below: 2000
Protection: IP55
Information and communication:
System to Inverter : CAN2.0
Battery to Battery/BMS : RS485
Data collection port /FW UPDATE: CAN2.0
Master control working mode indicator: 1 LED
Master Control Capacity Indicator: 4LED (25%, 50%, 75%, 100%)
LED battery module : 2 LEDs
Reset : Button
ON/OFF switch : Button*1 + switch*1
Certificates:
Safety: EC, RCM, TUV(IEC62619) UL1973,ROHS,REACH
UN number: UN3840
Classification of Hazardous Materials: Class 9
Transportation test requirement: UN38.3
Physics:
Dimensions (LxWxH) [mm]: 474*193*708 (T-BAT H 5.8) / 474*193*647 (HV11550)
Weight [kg]: 72.2 (T-BAT H 5.8) / 68.5 (HV11550)
*The Triple Power battery can be extended to 4 modules, for a total of 23.2kWh
Especificaciones
| Tensión nominal | |
|---|---|
| Tensión nominal (Vdc / Vac) | 115,2V |
| Especificaciones eléctricas generales | |
|---|---|
| Grado de protección IP | IP55 |
| Especificaciones técnicas de la batería | |
|---|---|
| Ciclos de vida de batería | 6000 |
| Especificaciones técnicas del inversor | |
|---|---|
| Corriente de carga/descarga máxima (A) | 35A |
| Máxima potencia de salida (kW) | 4kW |
| Filtros de búsqueda | |
|---|---|
| Potencia nominal de salida (W) | 2000W |
| Capacidad de almacenamiento de energía (kWh) | 5,8 |
| Parametros de la batería | |
|---|---|
| Comunicaciones | CAN/RS485 |
| Garantías | |
|---|---|
| Garantía (Años) | 10 años |
