Fixed inclined structures for solar panels

Within the fixed inclined structures, we can find, depending on the surface where it is installed, structures on flat surfaces or roofs, and structures to be installed on the ground.

Structures for flat surfaces or roofs

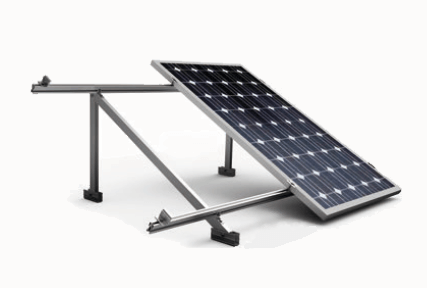

Tilted frames with fixed legs

We call this type of structures AEF, they can be ordered in 5º intervals from 5º to 35º of inclination.

GR series: Anodized aluminum

SU Series: Raw aluminum

En desarrollo
Odoo - Prueba 1 a tres columnas

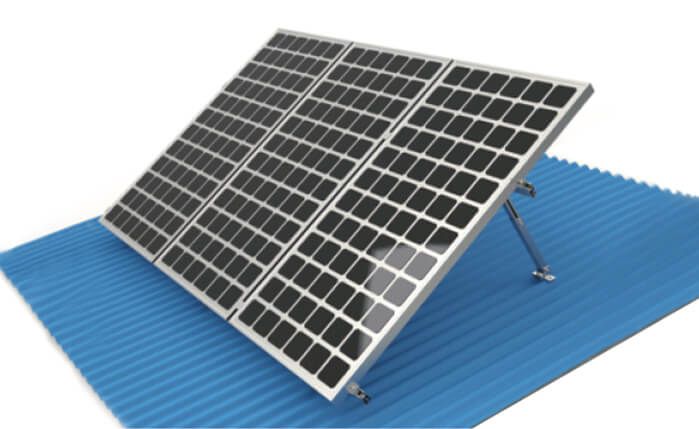

Elevated structures with adjustable legs from 15º to 30º.

We call this series AER

Serie GR: Aluminio anodizado, disponible en filas de hasta 20 paneles. Inclinación mínima 15º.

Serie SU: Aluminio crudo, disponible en filas de hasta 6 paneles. Inclinación mínima 25º

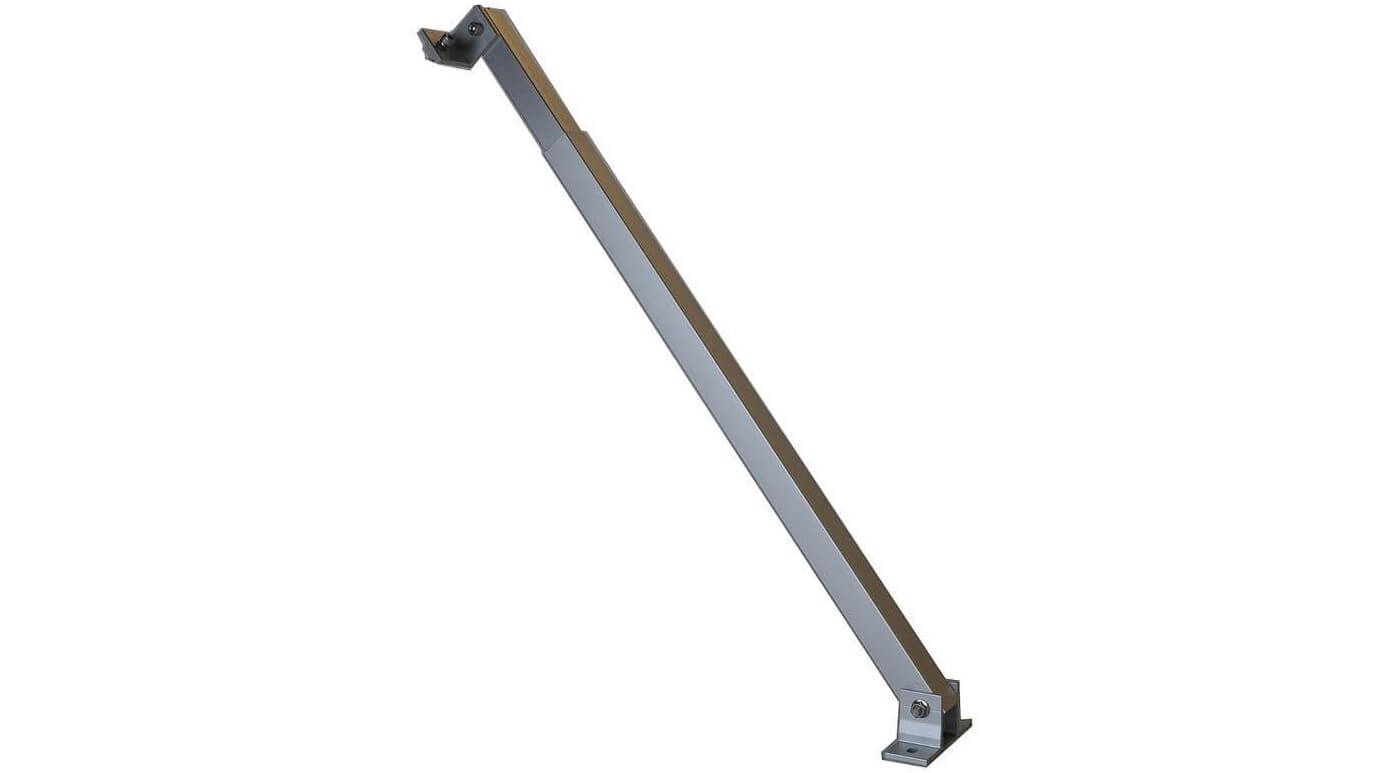

Elevated structures with adjustable legs from 30º to 60º.

We call this series AER

GR seriesAnodized aluminum, available in rows of up to 20 panelsMaximal inclination 60º.

SU SeriesRaw aluminum, available in rows of up to 6 panelsMaximal inclination 50º

Ground structures

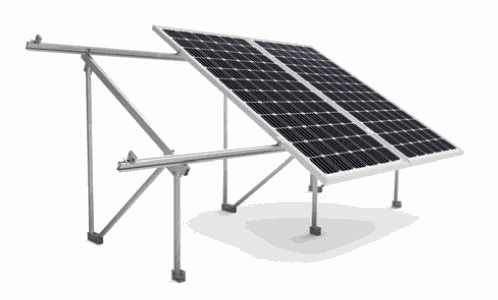

Inclined structure for land 1 row

Esta estructura para terreno de 1 fila de paneles a 30º, sirve tanto para paneles de 1650x1000mm como de 2000x10000mm

Disponible bajo pedido en inclinaciones de 5º a 35º en intervalos de 5º.

Odoo - Prueba 1 a tres columnas

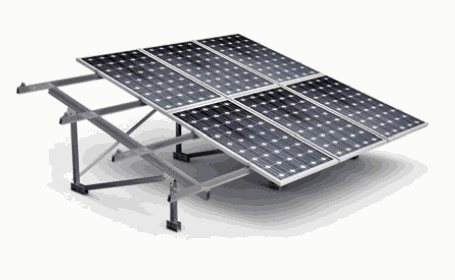

Inclined structure for land 2 rows

2-row ground structure Available in versions for 1650x1000mm or 2000x1000mm panels.

Odoo - Prueba 2 a tres columnas

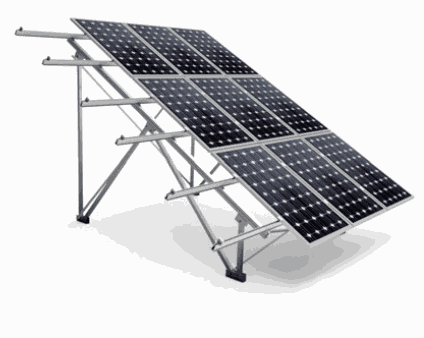

Inclined structure for terrain 3 rows

Available in versions for 1650x1000mm or 2000x1000mm panels.
