PHOTOVOLTAIC MATERIAL FOR SOLAR ENERGY INSTALLATIONS

Usar el buscador para encontrar tu producto:

Despliega el filtro por categorías ⬇

Inverters

  • Inverters 12V
  • Inverters 24V
  • Inverters 48V
  • Microinverters
  • Accessories for Solar Inverters
  • Hybrid Inverters
  • Off-grid inverters

Solar inverter

The photovoltaic inverter is the key part of your solar installation.

Although photovoltaic energy is usually associated with solar panels, the solar photovoltaic inverter is one of the main elements of this installation, as it will transform the energy from the solar panels into a solar energy source.

¡The best solar inverter is a must in an installation.!

Power, reliability and versatility in a reliable product
A single-phase inverter with over 97% efficiency

SolaX X-1 Boost 3.3TL

The X1-Boost series is one of the two most important ranges of SolaX together with the X-Hybrid series. It is single-phase self-consumption with 2 independent MPPT inputs, and with a power of 3.3kW.

X-1 Boost 3.3TL de Solax
Voltronic 48/5000 Axpert VM III 5K-48

Voltronic
48/5000 Axpert VM III 5K-48

For more demanding installations with an output of 5000W and a nominal voltage of 48V.

APSystems Microinversor monofásico

APSystems
Single-phase microinverter

With a power of 1200W
designed for small
installations.

SOFAR 48/5000 Inversor híbrido monofásico

SOFAR 48/5000
Single-phase microinverter

High versatility,
high power hybrid inverter, 5000W and 48V. and 48V.

Axpert KING Voltronic

Parallelisable solar inverter

They are those that allow the installation of more than one inverter in parallel, thus combining their qualities.
APSystems Microinversor monofásico

Single-phase solar inverter

Three-phase solar inverter

Solar inverter brands

Logo Demo
Logo Demo
Logo Demo
Logo Demo
Logo Demo
Logo Demo
Logo Demo
Logo Demo
Logo Demo
Logo Demo
Logo Demo
Logo Demo

¿What is a solar inverter?

It is an essential component of any photovoltaic system, transforming solar energy into electrical energy. that transforms solar energy into electrical energy.

How does a solar inverter work?

How does a solar inverter work?

The photovoltaic inverter converts the direct current, produced by the solar panels, into alternating current and also sends this direct current to the solar panel. This transformation is carried out thanks to power electronic devices that transform a linear current into a sinusoidal current.

Advantages of the solar inverter

For all the
installations

Saving
energy

Clean
energy

Economic
maintenance

¿How to choose an investor?

To choose or know which is the best solar inverter for a photovoltaic installation, we must take into account that there are countless models depending on the needs of the type and amount of energy. It can be a hybrid installation, a caravan, a small isolated installation or a large solar plant, there are as many options as installation options, what you have to take into account is that both the inverter and the battery work at the same voltage.


That is why the best way to answer these questions is to contact the professionals who will be able to inform you of the best options according to your specific needs. You can contact us and we will inform you without obligation about which models and types are the best for your installation.

True

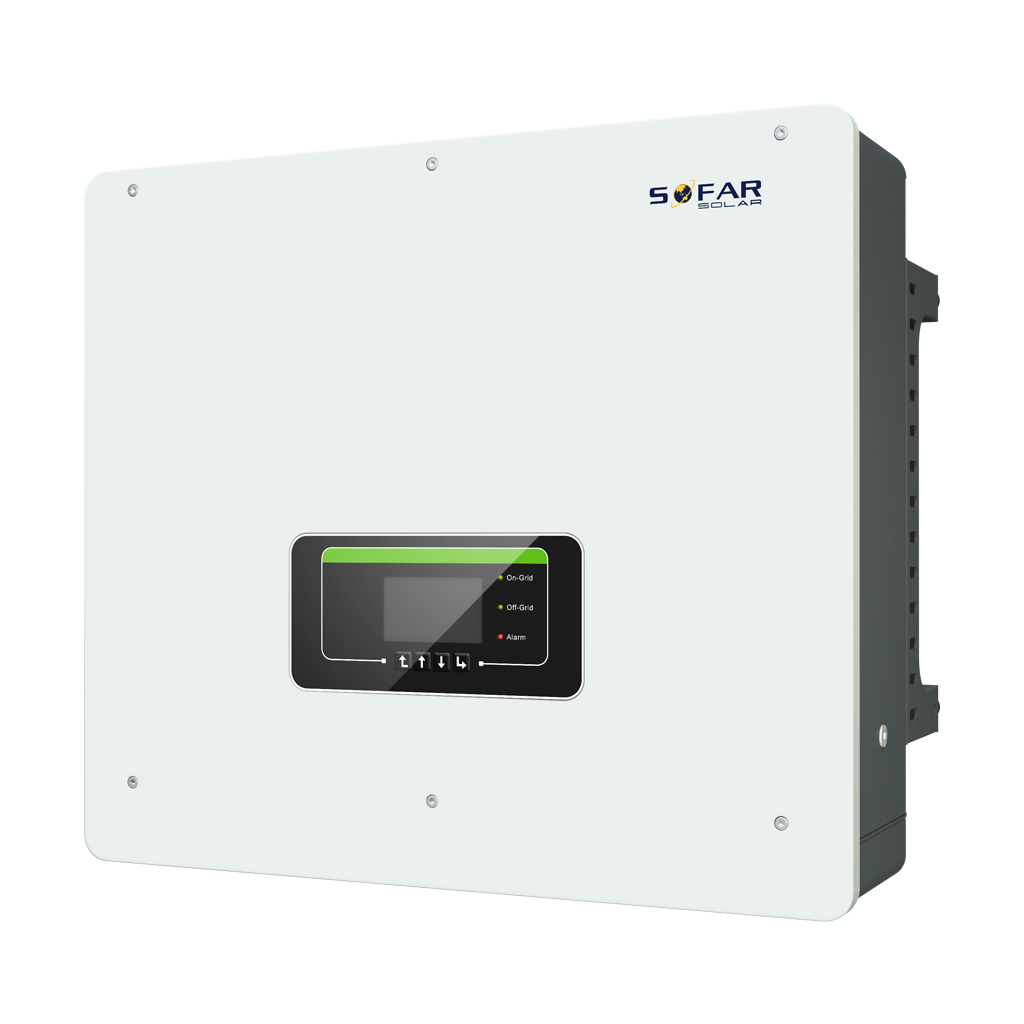

Sofar Solar HYD 15KTL-3PH 15000W [GRI0057] Sofar Solar HYD 15KTL-3PH 15000W
Three-phase hybrid inverter | 15kW | 25A | 2 MPPT | Wattmeter, clamps, WiFi and DC switch included
1,536.00 € 1536.0 EUR

1,858.56 € 1,858.56 € with taxes

True
Pinza toroidal 120A | CT 120A 3000:1 [ACC0796] Pinza toroidal 120A | CT 120A 3000:1
Clamp, toroidal, current sensor 120A | CT 120A 3000/1
45.60 € 45.6 EUR

55.18 € 55.18 € with taxes

True
64.60 € 64.6 EUR

78.17 € 78.17 € with taxes

True
45.60 € 45.6 EUR

55.18 € 55.18 € with taxes

Riello SIRIO K250 HV IMD | on grid inverter 250kW 880Vdc 420A [HYD1075] Riello SIRIO K250 HV IMD | on grid inverter 250kW 880Vdc 420A
Potencia nominal corriente alterna 250 KVA
Potencia máxima corriente alterna 250 KW (cos?=1).
*Entrada
Tensión continúa máxima en circuito abierto 880 Vdc
Rango completo de MPPT 450 ÷ 760 Vdc
Intervalo de ejercicio 450 ÷ 760 Vdc
Corriente de entrada máxima 590 Acc
Tensión de umbral para el suministro hacia la red 540 Vdc
Tensión de Ripple <1%
Número de entradas 1
Número de MPPT 1
Conectores CC Busbar
*Salida
Tensión de ejercicio 400 Vca
Intervalo de operación 340 ÷ 460 Vca (1)
Intervalo para la máxima potencia 340 ÷ 460 Vca
Intervalo de frecuencia 47,5 ÷ 51,5 Hz (Opcional a 60 Hz) (1)
Intervalo de frecuencia configurable 47 ÷ 53 Hz (Opcional a 60 Hz)
Corriente nominal 361 Aca
Corriente máxima 420 Aca
Contribución a la corriente de cortocircuito 630 Aca
Distorsión armónica (THDi) <3%
Factor de potencia de 0,9 ind. a 0,9 cap.p. (1)
Separación galvánica Transformador BF
Conectores CA Busbar
*Sistema
Rendimiento máximo 96,3%
Rendimiento europeo 95,3%
Consumo stand-by <32W
Consumo de noche <32W
Protecciones internas Magneto térmico lado CA - Seccionador en lado CC
Protección funcionamiento en isla Si
Detección dispersión hacia tierra Si
Disipación de calor Ventilador controlado
Temperatura de servicio -20°C ÷ 45°C (sin reducción de potencia)
Temperatura de almacenamiento -20°C ÷ 70°C
Humedad 5 ÷ 95% sin condensación
Peso 1630 Kg
*Comunicación:
Pantalla táctil LCD color 4.3".
Interfaz de comunicación: Ethernet, USB, 2 x RS232, 2
Entradas para control remoto (desconexión y EPO del inversor) y 3 relés de señales de estado
operativo.
RS485 (versión de ranura).
Protocolo incluido: ModBUS y ModBUS/TCP.
Conexión remota directa al Display mediante conexión VNC ( gratuita).
OPCIONES DE REGULACION DEL INVERSOR:
1.- Regulación de potencia final del inversor ( local y remoto.)
2.- Gestión del Factor de Potencia ( local o remoto).
3.- Gestión de Reactiva y activa ( local o remoto).
4.-Gestion del Mppt ( local o remoto)
5.-Variacion de la potencia final en relación a la frecuencia de la red ( compatible sistemas off-grid).
*Standards
EMC EN61000-6-3, EN61000-6-2, EN61000-3-11, EN61000-3-12
Seguridad EN62109-1, EN62109-2
Directivas Directiva de baja tensión: 2006/95/EC, EMC Directiva: 2004/108/EC
Supervisión de la red ref. SIRIO K80 HV CEI 0-16, A70, Real Decreto 413/2014, PO12.3, G59-2,G59,3,
Normativa Chile PGMD.
(1) Estos valores pueden variar de acuerdo con las regulaciones locales.
38,380.00 € 38380.0 EUR

46,439.80 € 46,439.80 € with taxes

Riello HBS 80 | Hybrid inverter | 80kW | 200A [HYD00021] Riello HBS 80 | Hybrid inverter | 80kW | 200A

*Input
Nominal Voltage: 400 VAC 3F
Voltage Tolerance: +20% / -25%
Frequency: 45 to 65 Hz
Soft Start: 0 - 100% in 125 sec (preset)
BY-PASS
Nominal Voltage: 400 V 3F + N (± 20%, preset)
Frequency: 50 or 60 Hz (Adjustable).

*Output
Nominal Power: 80 kvas.
Active Power: 72 kW.
Nominal Voltage: 400 V 3F ± 20% (preset)
Frequency: 50 or 60 Hz (adjustable).
Static Stability: ± 1%
Dynamic Stability: ± 5%
Voltage Distortion with Linear Load: 1% typ, 2% Max
Crest Factor (Ipeak/Irms) - EN62040-3: 3:1
Voltage Distortion with Non-Linear Load: < 3%
Overload: 110% for 60 min, 125% for 10 min, 150% for 1 min.
BATTERY
Type: VLRA AGM /GEL; NiCd for PV applications
Nominal Voltage: 384 Vdc
Residual Ripple Voltage: ± 1%
Maximum Charging Current from SPS Output (PV Inverter): 200A

*System
Dimensions (HxWxD): 888x740x1400
Weight (kg): 52
Operating Temperature: 0 to 40°C
RH: < 95% non-condensing
Color: RAL 7035
Protection Level: IP20
Standards: Safety IEC EN 62040-1; EMC IEC EN 62040-2; Performance IEC EN 62040-3
17,005.00 € 17005.0 EUR

20,576.05 € 20,576.05 € with taxes

3,906.48 € 3906.48 EUR

4,726.84 € 4,726.84 € with taxes

2,798.24 € 2798.2400000000002 EUR

3,385.87 € 3,385.87 € with taxes

True
2,665.53 € 2665.53 EUR

3,225.29 € 3,225.29 € with taxes

Azzurro ZZT-HYD6.0-3PH 6kW [ZZT-HYD6.0-3PH] Azzurro ZZT-HYD6.0-3PH 6kW
• Inversor fotovoltaico híbrido 3PH, 6kW. IP65
• 3 CT incluidos
• 5 años de garantía
2,611.72 € 2611.7200000000003 EUR

3,160.18 € 3,160.18 € with taxes

8,099.70 € 8099.7 EUR

9,800.64 € 9,800.64 € with taxes

8,581.83 € 8581.83 EUR

10,384.01 € 10,384.01 € with taxes

Azzurro ZZT-HYD8.0-3PH 8kW [ZZT-HYD8.0-3PH] Azzurro ZZT-HYD8.0-3PH 8kW
• Inversor fotovoltaico híbrido 3PH, 8kW. IP65
• 3 CT incluidos
• 5 años de garantía
2,914.64 € 2914.64 EUR

3,526.71 € 3,526.71 € with taxes

True

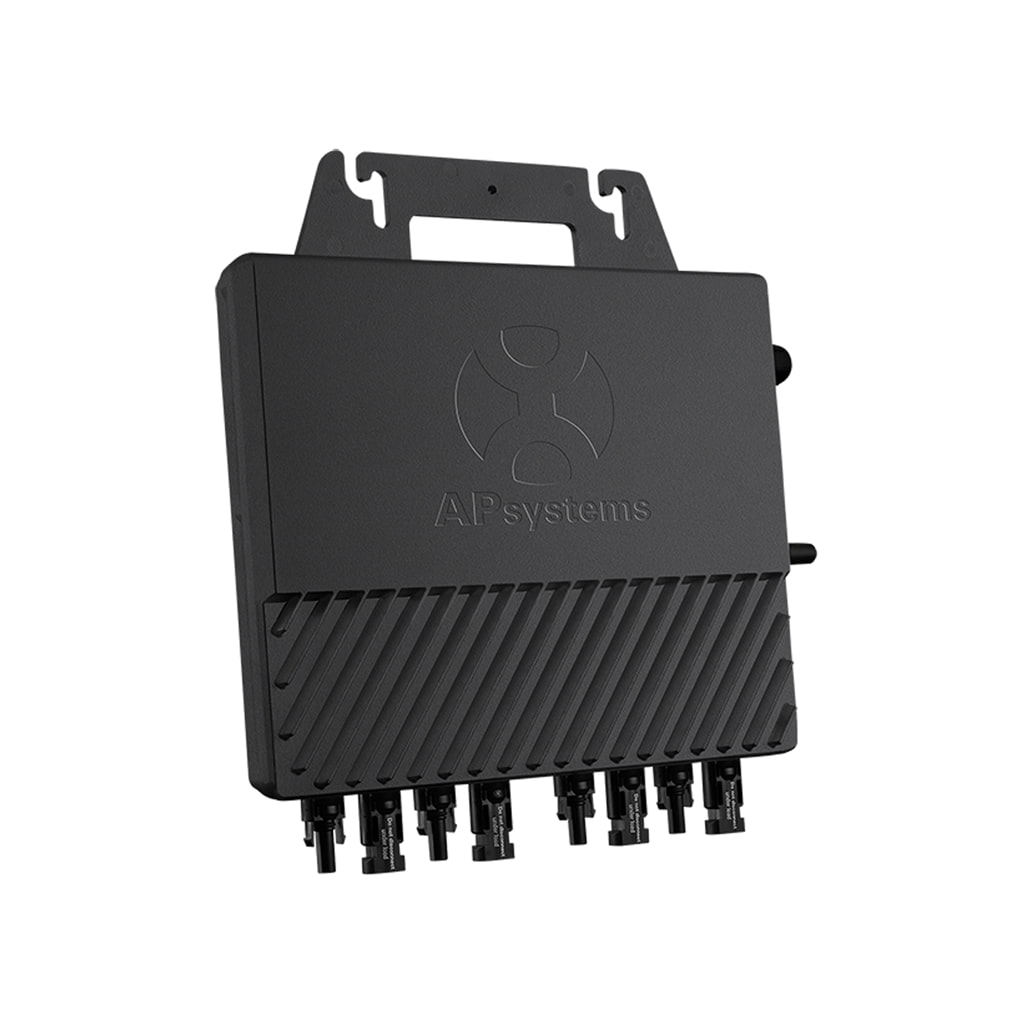

Microinversor monofásico 1200w 230V 50Hz | QS1-SH-EU | APSystems [HYD1209] Microinversor monofásico 1200w 230V 50Hz | QS1-SH-EU | APSystems
Posibilidad de adquirir una extensión de garantía a 20 años, siempre que se realice en los 30 primeros días de adquisición del equipo y se registre en la plataforma https://apsystemsema.com/ema/index.action. El registro de la garantía extendida requiere disponer de una unidad ECU que comunique el equipo a internet.
423.44 € 423.44 EUR

512.36 € 512.36 € with taxes

1,513.87 € 1513.8700000000001 EUR

1,831.78 € 1,831.78 € with taxes

Solax Power X1-VAST-8K 8000W (Incluye WiFi) [HYD1192] Solax Power X1-VAST-8K 8000W (Incluye WiFi)
· Inversor híbrido monofásico
· 4 MPPTs (20A por MPPT) con puerto de batería dual
· Puede conectar con baterías HS25/36 (2 a 8 baterías por puerto), T58 (2 a 6), T30 (2 a 8), HS51 and HS50E-D.

1,986.36 € 1986.3600000000001 EUR

2,403.50 € 2,403.50 € with taxes

Solax Power X1-VAST-6K 6000W (Incluye WiFi) [HYD1191] Solax Power X1-VAST-6K 6000W (Incluye WiFi)
· Inversor híbrido monofásico
· 3 MPPTs (20A por MPPT) con puerto de batería dual
· Puede conectar con baterías HS25/36 (2 a 8 baterías por puerto), T58 (2 a 6), T30 (2 a 8), HS51 and HS50E-D.

1,905.36 € 1905.3600000000001 EUR

2,305.49 € 2,305.49 € with taxes

Solax Power X1-VAST-10K 10kW (Incluye WiFi) [HYD1193] Solax Power X1-VAST-10K 10kW (Incluye WiFi)
· Inversor híbrido monofásico
· 4 MPPTs (20A por MPPT) con puerto de batería dual
· Puede conectar con baterías HS25/36 (2 a 8 baterías por puerto), T58 (2 a 6), T30 (2 a 8), HS51 and HS50E-D.

2,063.50 € 2063.5 EUR

2,496.84 € 2,496.84 € with taxes
