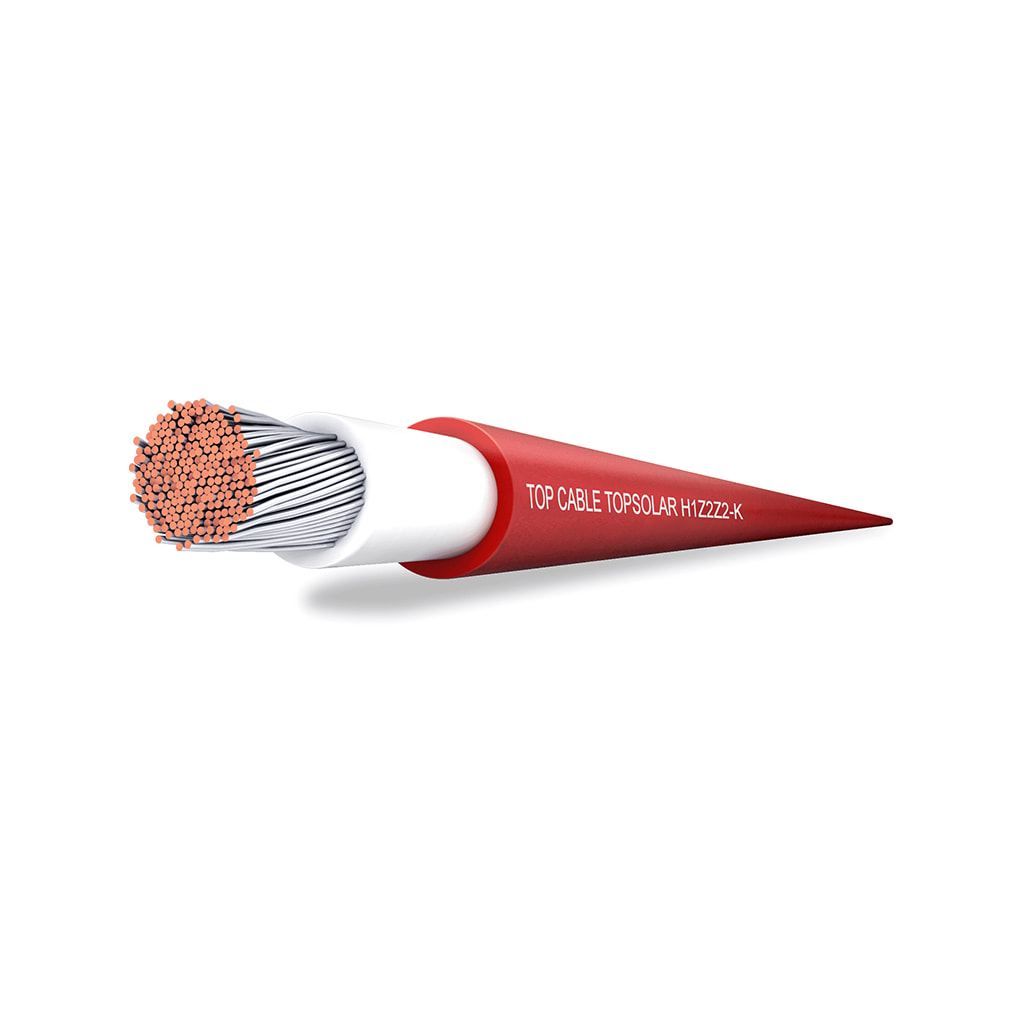

Top Cable TOPSOLAR PV H1Z2Z2-K 1x6mm² 1500V red (100m)
[ELE0983] Top Cable TOPSOLAR PV H1Z2Z2-K 1x6mm² 1500V red (100m)
100 metres of red solar cable 6mm2, 1500V, specialised for photovoltaic installations.
Maximum conductor temperature: 120º.
Maximum short-circuit temp.: 250º (max. 5s.)
Minimum service temperature: -40º (static with protection).
Reference Standards: EN 50618, IEC 62930 and UTE C 32-502
CPR: Cca -s1b,d2,a1
Display Name:
[ELE0983] Top Cable TOPSOLAR PV H1Z2Z2-K 1x6mm² 1500V red (100m)
HS Code:
85446090
Top Cable TOPSOLAR PV H1Z2Z2-K 1x6mm² 1500V red (100m)
100 metres of red solar cable 6mm2, 1500V, specialised for photovoltaic installations.
Descripción General
100 metres of red solar cable 6mm2, 1500V, specialised for photovoltaic installations. Maximum conductor temperature: 120º. Maximum short-circuit temp.: 250º (max. 5s.) Minimum service temperature: -40º (static with protection). Reference Standards: EN 50618, IEC 62930 and UTE C 32-502 CPR: Cca -s1b,d2,a1
Características Destacadas
- Caraterística: 100 metres of red solar cable 6mm2, 1500V, specialised for photovoltaic installations.
Especificaciones Técnicas
Detalles Técnicos
| Maximum conductor temperature | 120º. |
|---|---|
| Maximum short-circuit temp. | 250º (max. 5s.) |
| Minimum service temperature | -40º (static with protection). |
| Reference Standards | EN 50618, IEC 62930 and UTE C 32-502 |
| CPR | Cca -s1b,d2,a1 |
Información Adicional
Este producto cumple con los estándares de calidad de TechnoSun.
Documentación y Soporte
Descargue la ficha técnica completa en la sección de descargas. Para asistencia técnica, contacte con nuestro equipo.
