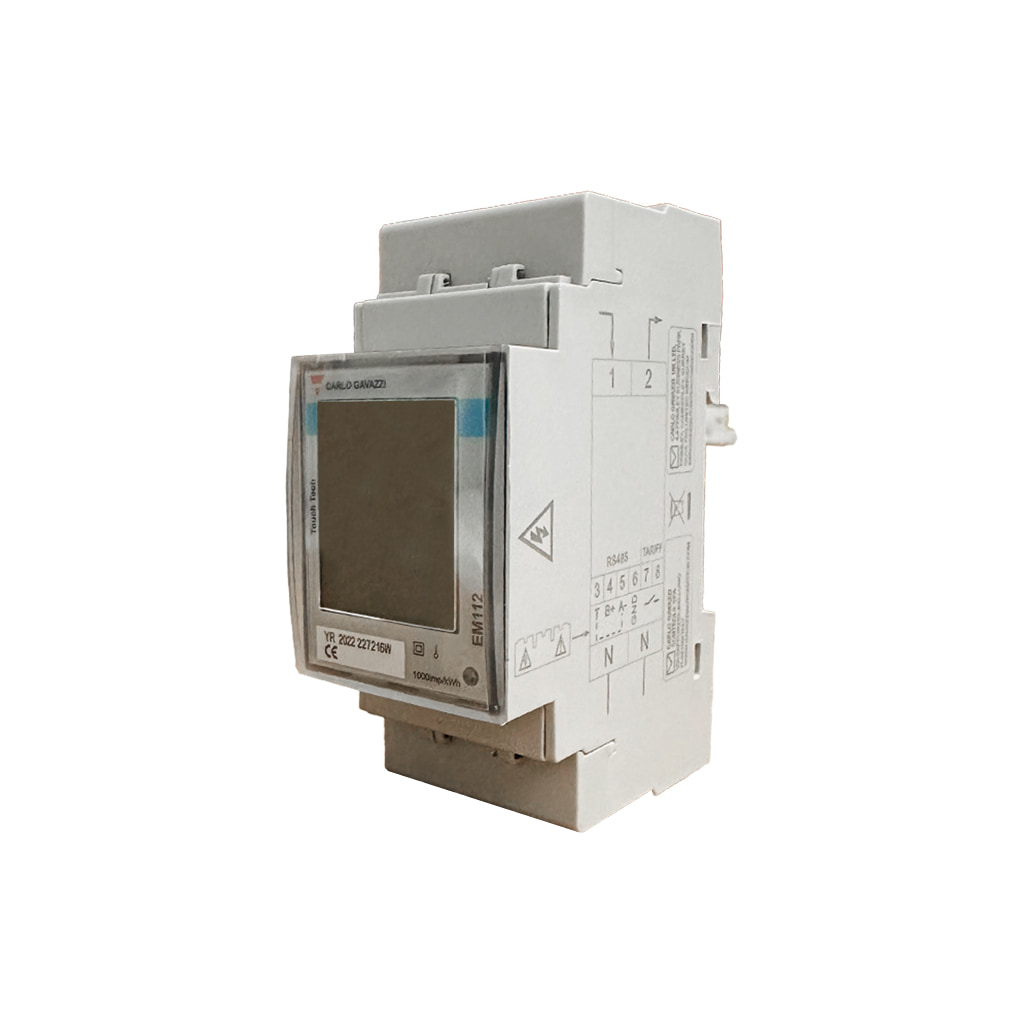

Power meter 100A 1PH for Huawei - Carlo Gavazzi

[MON0273] Power meter 100A 1PH for Huawei - Carlo Gavazzi

Single phase energy analyzer
• Class 1 (kWh) according to EN62053-21
• Accuracy ±0.5% RDG (current/voltage)
• Direct current measurement up to 100AAC
• Backlit LCD display (3x 8-digit) with integrated touch key-pad
• Energy readout on display: 8 digit
• Variable readout on display: 4 digit
• Energy measurement: kWh and kvarh (imported/exported);
kWh+ by 2 tariffs
• System variables, kW, kvar, V, A, PF, Hz, kWdmd, kWdmdpeak
• Self power supply
• Dimensions: 2-DIN module
• Protection degree (front): IP51
• RS485 Modbus port
• Digital input (for tariff management)
• Easy connection or wrong current direction detection

Display Name: [MON0273] Power meter 100A 1PH for Huawei - Carlo Gavazzi
HS Code: 90283011
