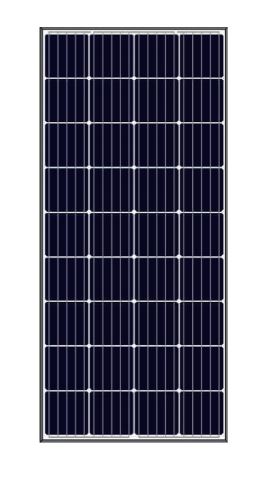

Panel solar 190W Mono PERC | SP190-36M | 1500x680x35mm

[SOL0310] Panel solar 190W Mono PERC | SP190-36M | 1500x680x35mm

  • Product width (mm)
  • Product height/length (mm)
  • Product depth (mm)
  • Type of plates or cells
  • No. of cells
  • Short circuit current (Isc)
  • Maximum power (Pmax)
  • Max. power voltage (Vmp)
  • Open circuit voltage (Voc)
  • Product weight (Kg)
  • Temp. coefficient Pmax (%)/ºC
  • Temp. coefficient Voc (%)/ºC
  • Temp. coefficient Isc (%)/ºC
  • Max. current voltage (Imp)
  • Units per pallet
  • Units per container

116.88 € 116.88 € / Unit(s) 116.88 EUR

129.86 €

141.42 € 141.42 € with taxes

Esta combinación no existe.

Agregar al carrito

190W Vmp1808 Imp10.11 Voc22.8 Isc10.61 (%)18.9 1500x680x35mm 12kgs 36 células


..


Esta es una vista previa de los productos vistos recientemente por el usuario.
Una vez que el usuario haya visto al menos un producto, este fragmento será visible.

Recently viewed products

Specifications for Panel solar 190W Mono PERC | SP190-36M | 1500x680x35mm

Product information
Product width (mm) 680mm
Product height/length (mm) 1500mm
Product depth (mm) 35
Battery technical specifications
Type of plates or cells Mono Crystalline Silicon
Technical specifications of the solar panel
No. of cells 36
Short circuit current (Isc) 10.61
Maximum power (Pmax) 190
Max. power voltage (Vmp) 18,8
Open circuit voltage (Voc) 22.8
Product weight (Kg) 12
Temp. coefficient Pmax (%)/ºC -0,40%/ºC
Temp. coefficient Voc (%)/ºC -0.2893%/ºC
Temp. coefficient Isc (%)/ºC 0.0495%/Cº
Max. current voltage (Imp) 10.12
Logistics information
Units per pallet 84
Units per container 588/20´
