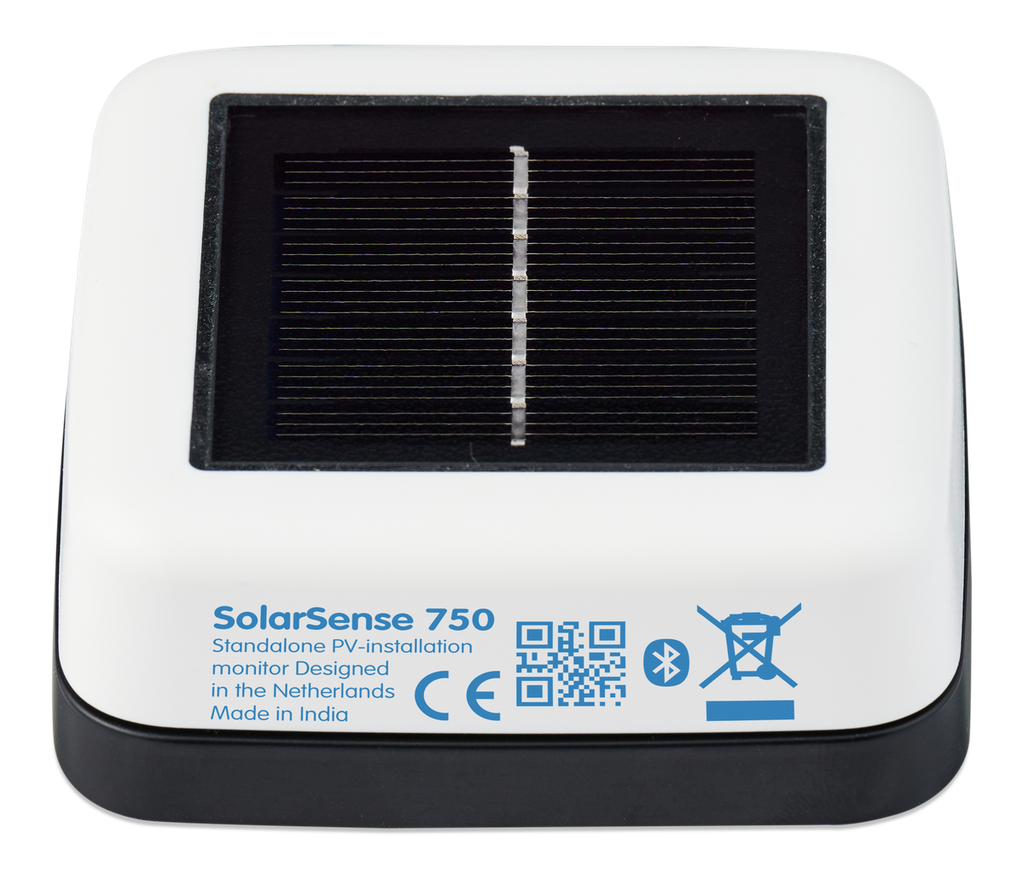

Victron SolarSense 750

Victron SolarSense 750

[SLS300175100] Victron SolarSense 750

https://b2b.technosun.com/web/image/product.template/63992/image_1920?unique=45fbd17

Self-powered wireless PV-monitoring sensor. Measures irradiance, panel temperature, estimated PV power and daily yield. Native integration with VictronConnect, VRM and Node-RED. 60-month warranty. Net weight 141 g. Country of origin: India.

Not Available For Sale

    This combination does not exist.

    Contact Us
    📕 Descarga de documentación

    Sales and terms conditions

    Display Name: [SLS300175100] Victron SolarSense 750

    Victron SolarSense 750: Self-powered wireless PV performance sensor

    Real-time monitoring of irradiance, estimated PV power and module temperature

    Fully self-sufficient device with built-in solar panel and Instant Readout Bluetooth BLE communication. Measures irradiance, panel temperature and the array's estimated PV power, integrating the data into the VictronConnect app, the VRM portal (via GX devices) and Node-RED flows. Designed to validate sites prior to sale, manage discretionary loads and audit the real performance of operating PV installations.

    SKU

    SLS300175100

    Power supply

    Self-powered

    Communication

    Bluetooth BLE

    Protection

    IP65

    Detailed Technical Specifications

    • Power supply: Self-powered via built-in solar panel
    • Internal battery: Rechargeable 40 mAh / 3.6 V
    • Operating temperature range: -40 °C to +85 °C
    • Irradiance resolution: 0.1 W/m²
    • Estimated solar power resolution: 1 W
    • Daily yield resolution: 1 Wh
    • Temperature resolution: 0.1 °C
    • Material & colour: Black PPO / PPE housing; White PC cover
    • Dimensions (h x w x d): 110 x 78 x 32 mm
    • Weight (with packaging): 200 g
    • Net device weight: 141 g
    • Protection rating: IP65
    • Mounting holes: 2 x Ø 6.5 mm
    • Included bracket: Black bracket with alignment ledge
    • Included hardware: 1x PZ1 M3 x 30 mm screw + 2x PZ2 4.2 x 22 mm self-drilling screws
    • Country of origin: India
    • Communication technology: Bluetooth Low Energy (BLE) Instant Readout
    • App compatibility: VictronConnect (iOS, Android, Windows, macOS)
    • GX integration: Cerbo GX, Ekrano GX and other GX devices via Bluetooth Sensors (Remote Console > Settings > Integrations)
    • Remote integration: VRM portal through the GX device and Node-RED flows
    • Stored trends: Irradiance, estimated power and temperature for 31 days
    • Stored history: Max daily irradiance, daily min/max power and temperature, daily estimated yield for 730 days
    • Configurable parameters: Installation peak power (STC) and temperature derating coefficient
    • Electromagnetic emission and immunity: EN-IEC 62052-11
    • CE marking: Compliant with applicable European directives
    • Official Victron Energy warranty: 60 months
    • EAN: 8719076065685
    • Masterbox: 20 units (EAN 8719076065692)

    Performance and Operating Data

    Energy autonomy

    • Built-in solar panel for continuous recharging.
    • Internal 40 mAh / 3.6 V rechargeable battery.
    • No external power wiring or replaceable batteries required.

    Measurement accuracy

    • Irradiance with 0.1 W/m² resolution.
    • Cell temperature with 0.1 °C resolution.
    • Estimated PV power with 1 W resolution.

    BLE communication

    • Instant Readout transmission via Bluetooth Low Energy advertisements.
    • No prior pairing required with the app.
    • BLE range can be reduced by metal structures, panel frames or nearby metal roofs.

    Data storage

    • Trends: 31 days of irradiance, estimated power and temperature.
    • History: 730 days of daily maximum and minimum values.
    • Persistent on-device memory; no cloud connection required to retain the log.

    Detailed Applications and Use Cases

    chevron_right Self-consumption optimisation in battery-limited systems
    • Quantifies in real time the available solar energy the array could deliver.
    • Allows redirecting surplus to additional loads (water heating, HVAC, EV charging) when batteries are fully charged.
    • Reduces reliance on later battery discharges by maximising instantaneous use of generation.
    chevron_right Smart management of discretionary loads
    • Provides GX devices and Node-RED with the instantaneous PV power available.
    • Enables optional loads to be switched on or off based on objective real-irradiance criteria.
    • Compatible with energy-management automations and custom dashboards.
    chevron_right Pre-installation site survey and configuration benchmarking
    • Deploy as a pilot device for days or weeks at the customer's site.
    • Quantitative comparison between different orientations, tilts and roof areas.
    • Seasonal validation of the future installation's viability before signing the project.
    • Reinforces the installer's commercial proposal with real on-site data.
    chevron_right Continuous PV array performance audit
    • Cross-checks the inverter's effective generation against the sensor's estimated potential.
    • Detects losses from soiling, partial shading, degradation or orientation drift.
    • Quick diagnostic for technical support and preventive maintenance of the plant.

    Certifications and Regulatory Compliance

    Electromagnetic compatibility

    • check EN-IEC 62052-11 - EMC emission and immunity requirements for metering equipment.
    • check CE marking - Compliance with applicable European directives.

    Protection and environment

    • check IP65 - Dust-tight and protected against water jets; suitable for outdoor installation.
    • check Operating range -40 °C / +85 °C - Guaranteed operation in extreme climates.

    Warranty and support

    • check Official Victron Energy warranty - 60-month manufacturer coverage.
    • check Techno Sun professional support - Technical service for installers across Spain.

    Techno Sun Professional Technical Service

    Specialist technical support for professional installers, with guidance on sizing, integration with GX devices and the VRM portal, configuration of Node-RED flows and resolution of technical incidents.

    PERMANENT STOCK 24-48H SHIPPING OFFICIAL VICTRON ENERGY WARRANTY

    Victron SolarSense 750

    Reference: SLS300175100 | Wireless PV monitoring sensor

    The definitive solution for auditing the real potential of a PV array, optimising the use of surplus solar energy and validating sites before installation.
