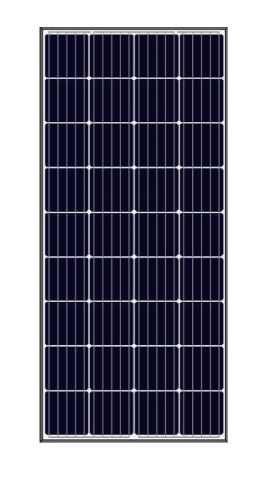

Panel solar 190W Mono PERC | SP190-36M | 1500x680x35mm
[SOL0310] Panel solar 190W Mono PERC | SP190-36M | 1500x680x35mm
190W Vmp1808 Imp10.11 Voc22.8 Isc10.61 (%)18.9 1500x680x35mm 12kgs 36 células
This product is no longer available.
Product width (mm): 680mm |
Product height/length (mm): 1500mm |
Product depth (mm): 35 |
Type of plates or cells: Mono Crystalline Silicon |
No. of cells: 36 |
Short circuit current (Isc): 10.61 |
Maximum power (Pmax): 190 |
Max. power voltage (Vmp): 18,8 |
Open circuit voltage (Voc): 22.8 |
Product weight (Kg): 12 |
Temp. coefficient Pmax (%)/ºC: -0,40%/ºC |
Temp. coefficient Voc (%)/ºC: -0.2893%/ºC |
Temp. coefficient Isc (%)/ºC: 0.0495%/Cº |
Units per pallet: 84 |
Units per container: 588/20´ |
Display Name:
[SOL0310] Panel solar 190W Mono PERC | SP190-36M | 1500x680x35mm
