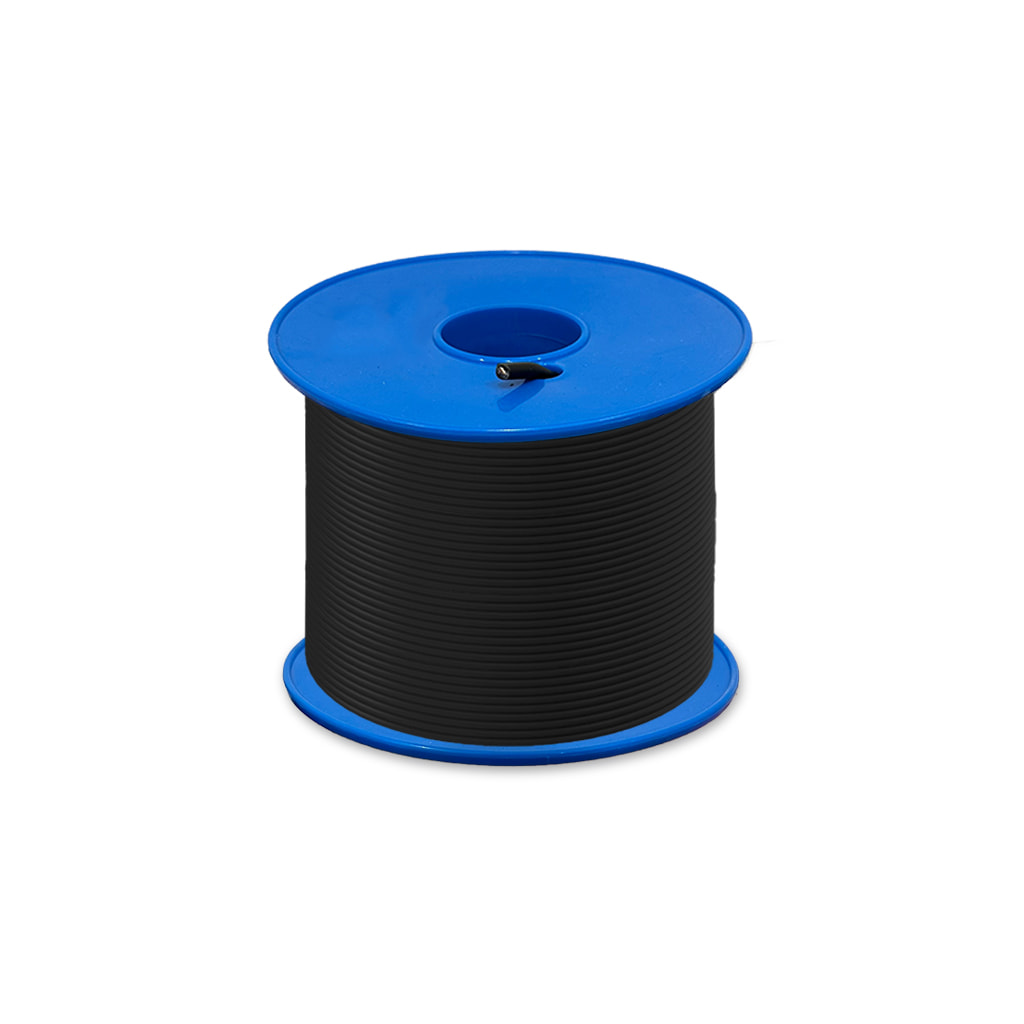

SOLITIA Serie Elecsun Cable Solar FV H1Z2Z2-K 1x4mm² 1500V negro (100m)
[ELE0976] SOLITIA Serie Elecsun Cable Solar FV H1Z2Z2-K 1x4mm² 1500V negro (100m)
100 metros de cable solar negro de 4mm2 y 1500V especializado para instalaciones fotovoltaicas, ignífugo y sin halógenos.
Temp. máxima del conductor: 120º
Temp. máxima de cortocircuito: 250º (máximo 5s.)
Rango de temperatura: -40º +90º
Normas de referencia: IEC 60332-1-2, EN 50618 y IEC 62930
Compatible con todos los conectores.
Nombre mostrado:
[ELE0976] SOLITIA Serie Elecsun Cable Solar FV H1Z2Z2-K 1x4mm² 1500V negro (100m)
Código HS:
85446090
SOLITIA Elecsun Series Solar Cable PV H1Z2Z2-K 1x4mm² 1500V black (100m)
100 metres of black solar cable, 4mm2 and 1500V, specialised for photovoltaic installations, fireproof and halogen-free.
Descripción General
100 metres of black solar cable, 4mm2 and 1500V, specialised for photovoltaic installations, fireproof and halogen-free. Maximum conductor temperature: 120º. Maximum short-circuit temperature: 250º (maximum 5s.) Temperature range: -40º +90º. Reference Standards: IEC 60332-1-2, EN 50618 and IEC 62930 Compatible with all connectors.
Características Destacadas
- Caraterística: 100 metres of black solar cable, 4mm2 and 1500V, specialised for photovoltaic installations, fireproof and halogen-free.
- Maximum short-circuit temperature: 250º (maximum 5s.)
- Caraterística: Compatible with all connectors.
Especificaciones Técnicas
Detalles Técnicos
| Maximum conductor temperature | 120º. |
|---|---|
| Temperature range | -40º +90º. |
| Reference Standards | IEC 60332-1-2, EN 50618 and IEC 62930 |
Información Adicional
Este producto cumple con los estándares de calidad de TechnoSun.
Documentación y Soporte
Descargue la ficha técnica completa en la sección de descargas. Para asistencia técnica, contacte con nuestro equipo.
Especificaciones
| Marca | Solitia |
