  2. BYD Battery-Box Premium LVL 15.4 [LIT0534] BYD Battery-Box Premium LVL 15.4

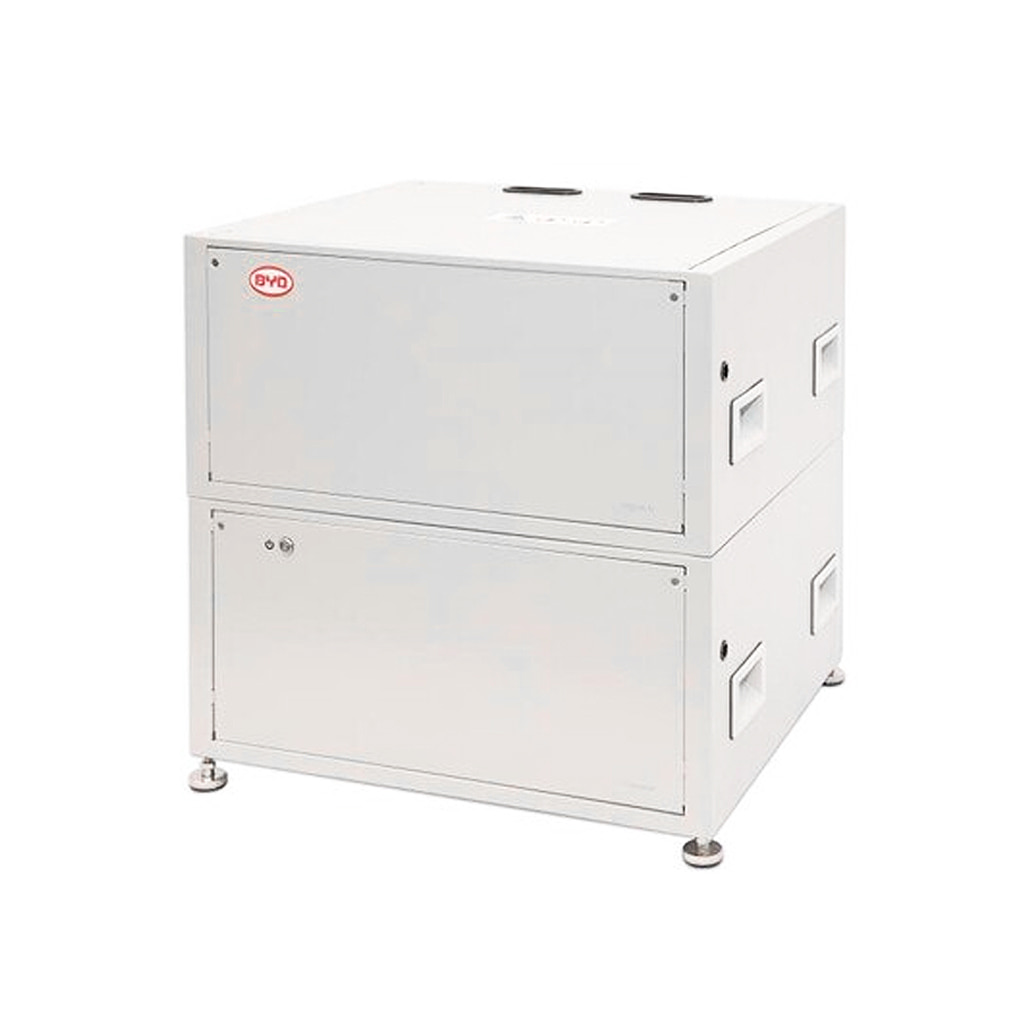

BYD Battery-Box Premium LVL 15.4

[LIT0534] BYD Battery-Box Premium LVL 15.4

https://b2b.technosun.com/web/image/product.template/14452/image_1920?unique=9348a97

Battery-Box Premium LVL 15.4 módulo de batería de litio.
Requiere de BMU (LIT0518).
Compatible con inversores: Victron y SMA.
Garantía de producto: 10 años

7.328,13 € 7328.13 EUR 7.328,13 € IVA excluido

7.328,13 € IVA excluido

8.867,04 € 8.867,04 € con impuestos

Not Available For Sale

(7.328,13 € / Ud.(s))

    Esta combinación no existe.

    Sin existencias.
    Correo electrónico inválido
    Te avisaremos cuando el producto vuelva a estar disponible.
    Contáctenos

    Términos y condiciones de venta

    Nombre mostrado: [LIT0534] BYD Battery-Box Premium LVL 15.4
    Código HS: 85076000

    BYD BATTERY-BOX PREMIUM LVL

    Storage capacity: 15.4 kWh

    • Expandable system from 15.4 to 983 kWh

    • Compatible with single-phase and three-phase inverters

    • Cobalt-free lithium iron phosphate (LFP) battery: maximum safety, durability and performance

    • Perfect for backup and off-grid systems.

    • Battery volume is reduced by 50%.

    • Space saving due to the possibility to stack 2 batteries Battery-Box LVL 15.4

    • Add more batteries in parallel at any time to expand the system. (Up to a maximum of 64 batteries, 983kWh)

    B-Box PRO 13.8 vs Battery-Box LVL

    Odoo CMS - una imagen grande

    The BYD Battery-Box Premium LVL is a lithium iron phosphate (LFP) battery for use with an external inverter.

    The Premium LVL Battery can be scaled to meet all project requirements, no matter how large. Start with the Premium Battery-Box LVL15.4 (15.36 kWh) and combine it up to a maximum of 983 kWh by connecting up to 64 batteries in parallel.



    Easy to install

    A single cable



    Simple design

    From 15.4kWh to 983kWh

    Easy to climb

    It is prepared for any modification

    Technical specifications of the Battery-Box Premium LVL

    Battery-Box Premium LVL 15.4

    Number of modules per battery: 2

    Useful capacity [1]: 15.36 kWh

    Output current [2]: 250A

    Maximum output current [2]: 375A, 5s

    Dimensions (H/W/D): 500 x 575 x 650 mm

    Weight: 164 kg

    Nominal voltage 51.2 V

    Voltage range 40-59 V

    Ambient temperature -10 °C to +50 °C

    Cell technology Lithium iron phosphate battery (cobalt free) CAN/RS485 interfaces

    Protection class: IP20

    Battery efficiency: ≥95%

    Parallel connection: Max. 64 in parallel (983 kWh)

    Certification IEC62619 / CE / CEC / UN38.3

    Applications: ON Grid (Grid connected / ON Grid + Backup (emergency/EPS) / OFF Grid (isolated)

    Warranty period[3]: 10 years

    Compatible inverters: See the compatibility list for BYD Battery-Box Premium inverters and the configuration list.

    1] Usable DC capacity, test conditions: 100% DOD, load and unload 0.2C at +25°C; usable capacity depending on the inverter if required.

    2] The power is reduced from -10 °C to +5 °C

    3] BYD (BYD Battery-Box Premium Limited Warranty Letter) conditions apply.
