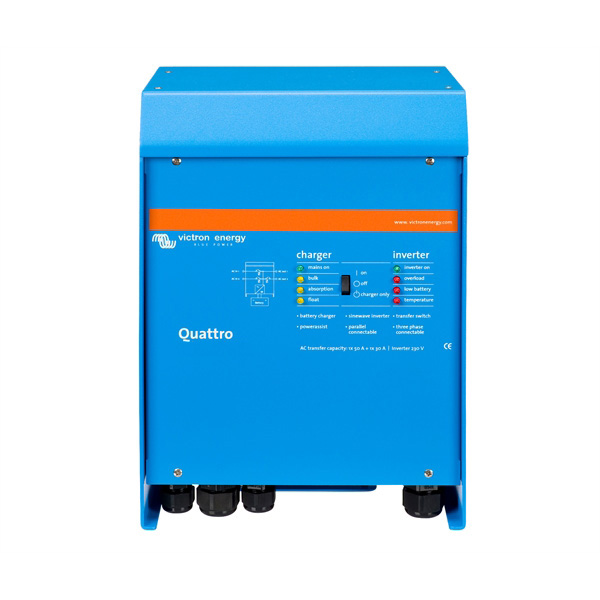

Quattro 48/5000/70-100/100 230V VE.Bus
[QUA485021010] Quattro 48/5000/70-100/100 230V VE.Bus
Display Name:
[QUA485021010] Quattro 48/5000/70-100/100 230V VE.Bus
HS Code:
85044085
- 01 Ficha técnica Quattro 3kVA-15kVA Victron Energy [ES]
- 02 Guía de configuración VE.Bus [ES]
- 02 Guía de instalación rápida Quattro 24V-48V 5000VA 230Vac Victron [EN]
- 02 Manual Quattro 5k-8k-10k-15K-100-100A-230V Victron [EN] [NL] [FR] [DE] [ES] [SE] [IT]
- 03 Certificado ISO9001 Victron [EN]
- 03 Declaración de conformidad Quattro y Quattro-II Victron [EN]
The Quattro 48/5000 is an inverter and charger with two AC inputs that automatically connects to the active input.
Features of the Quattro 48/5000 include a pure sine wave inverter, variable load, hybrid PowerAssist technology, plus multiple features for integration into different systems, such as three-phase or split-phase systems.
The Quattro can be connected to two independent AC power sources. The main output has a "no-break" function (no switch). In the event of a power failure, or disconnection from the mains or generator, the Quattro takes over the supply of the connected loads. The second output is only active when one of the Quattro's inputs is AC powered.
The Quattro can prevent overloads on a limited AC source, such as a generator or a port socket. First, it will automatically reduce the battery charge when an overcharge occurs. Secondly, it will draw current from the battery to compensate for power from the generator or the mains.
Up to 6 Quatters can be connected in parallel to achieve a higher power output. Operation in three-phase or split-phase mode is also possible.
