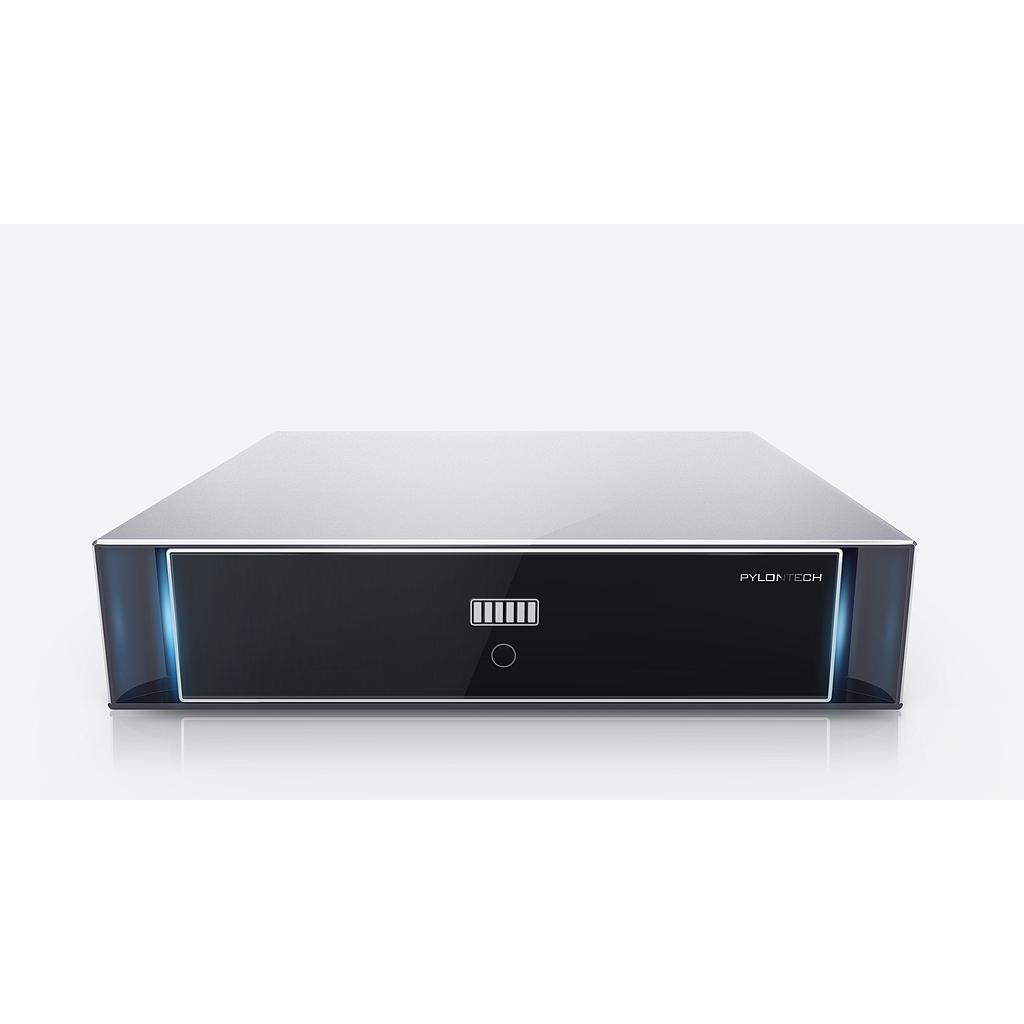

  2. Rackmount lithium battery 2.4kW 48v | 4500 cycles 90% DOD | 24kg | 50A max | Phantom-S - PYLONTECH Rackmount lithium battery 2.4kW 48v | 4500 cycles 90% DOD | 24kg | 50A max | Phantom-S - PYLONTECH

Rackmount lithium battery 2.4kW 48v | 4500 cycles 90% DOD | 24kg | 50A max | Phantom-S - PYLONTECH

Rackmount lithium battery 2.4kW 48v | 4500 cycles 90% DOD | 24kg | 50A max | Phantom-S - PYLONTECH

https://b2b.technosun.com/web/image/product.template/8818/image_1920?unique=1691c01

This product is no longer available.

Términos y condiciones de venta

Display Name: Rackmount lithium battery 2.4kW 48v | 4500 cycles 90% DOD | 24kg | 50A max | Phantom-S - PYLONTECH

Specifications

Product information
Model Phantom-S
Compatible Inverters SOLAX / VICTRON / VOLTRONIC
General electrical specifications
IP protection grade IP20
Ambient temperature range (ºC) 0-50
Battery technical specifications
Life cycles >4500
Modules per battery 1
Battery type LiFePO4
Especificacions tècniques de l'inversor
Maximum load/unload current (A) 50
Peak charge/discharge current 15s (A) 100
Maximum output power (KW) 2,4
Parallel 8 (x5 con HUB)
Operating Voltage Range (V) 45-53,5
Dades físiques del producte
Height/box length (mm) 445
Especificacions tècniques del carregador de bateries
Recommended loading/unloading current (A) 25
Normatives
Certificates TUV/CE/UN38.3 Sicherheitsleitfaden Li-Ionen-Hausspeicher
Logistics information
Box width (mm) 428
Case depth (mm) 97,5
Weight with box (Kg) 24
Filtros de búsqueda
Energy storage capacity (kWh) 2,2
Nominal voltage (V) 48
Parametros de la batería
Communications RS232/RS485/CAN
Warranties
Warranty (Years) 10
