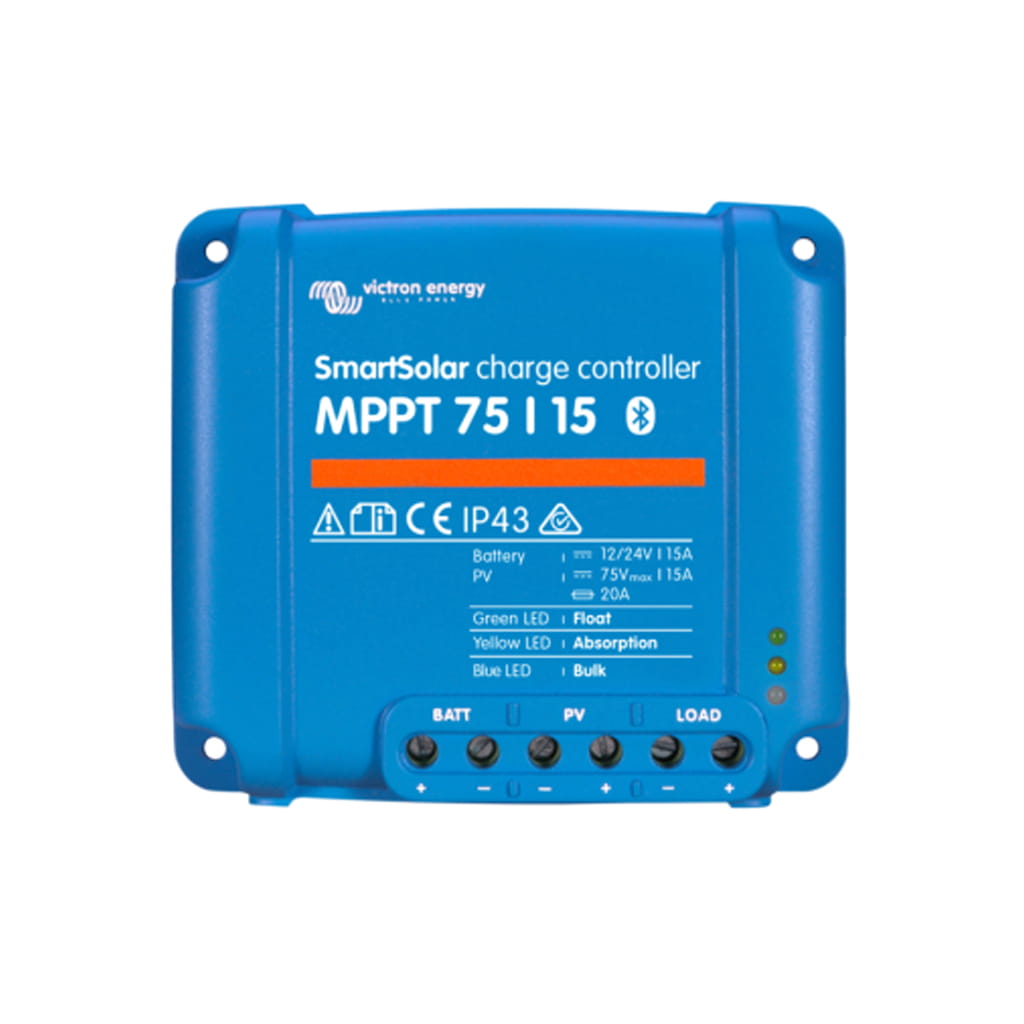

SmartSolar MPPT 75/15 Retail
[SCC075015060R] SmartSolar MPPT 75/15 Retail
Display Name:
[SCC075015060R] SmartSolar MPPT 75/15 Retail
HS Code:
85044060
SCC075015060R
Consultar
Consultar kg
⚙️ Especificaciones Técnicas Completas
Especificaciones Eléctricas
- Tensión de Batería (Auto): 12V / 24V
- Corriente de Carga Nominal: 15A
- Potencia FV Nominal 12V: 220W
- Potencia FV Nominal 24V: 440W
- Corriente Cortocircuito FV Máx: 15A
- Tensión Circuito Abierto FV Máx: 75V
- Eficiencia Máxima: 98%
- Autoconsumo (Carga ON): 12v: 19mA, 24v: 16mA
- Autoconsumo (Carga OFF): 12v: 10mA, 24v: 8mA
- Tensión Carga Absorción: 14.4V / 28.8V (adjustable)
- Tensión Carga Flotación: 13.8V / 27.6V (adjustable)
- Algoritmo de Carga: Adaptive multiphase
- Compensación Temperatura: -16mV/°C, -32mV/°C resp.
- Corriente Carga Continua: 15A
- Desconexión Baja Tensión: 11.1V/22.2V/44.4V or 11.8V/23.6V/47.2V or BatteryLife algorithm
- Reconexión Tensión: 13.1V/26.2V/52.4V or 14V/28V/56V or BatteryLife algorithm
Especificaciones Físicas
- Dimensiones (A x A x P): 100 x 113 x 50 mm (H x W x D)
- Peso: 0.6kg
- Color: Blue (RAL 5012)
- Terminales de Conexión: 6mm² / AWG10
- Protección IP: IP43 (electronics), IP22 (connection area)
- Temperatura de Operación: -30°C to +60°C (full rated power up to 40°C)
- Humedad Relativa: 95%, non-condensing
🏭 Aplicaciones Profesionales
Residencial
Instalaciones domésticas de alta eficiencia
Comercial
Soluciones para empresas y edificios
Industrial
Grandes instalaciones y plantas solares
Off-Grid
Sistemas aislados y autónomos
✨ Ventajas y Características Premium
Protección
Short-circuit output protection
Protección
Over-temperature protection
Protección
Automatic load disconnect
Mppt Tracking
Ultra-fast Maximum Power Point Tracking - improves energy harvest up to 30% vs PWM and 10% vs slower MPPT controllers
Load Output
Short-circuit proof load output with automatic disconnect when battery reaches preset voltage
Batterylife Algorithm
Intelligent battery management - controls charge state and modulates load disconnect level to achieve ~100% recharge about once per week
Programmable Battery Charge
Programmable battery charge algorithm
Day Night Timer
Day/night timer and light dimming option
📡 Conectividad y Monitorización
Ve Direct
Wired data connection to Color Control GX, other GX products, PC or other devices
Bluetooth Smart
Built-in wireless solution for setup, control, update and synchronization
Data Port
VE.Direct (see data communication white paper on website)
🏆 Certificaciones y Garantía
Certificaciones Internacionales
- ✅ EN/IEC 62109-1
- ✅ UL 1741
- ✅ CSA C22.2
Garantía y Soporte
- 🛡️ Garantía del fabricante extendida
- 🔧 Servicio técnico especializado
- 📞 Soporte telefónico profesional
- 🚚 Stock permanente para envío inmediato
- 📚 Documentación técnica completa
💼 Servicio Técnico Profesional TechnoSun
Nuestro equipo de ingenieros especializados está a su disposición para proporcionarle asesoramiento técnico, soporte en la puesta en marcha y asistencia postventa.
🏆 Victron Energy SmartSolar MPPT 75/15 Retail
Referencia: SCC075015060R
La elección profesional para instalaciones solares de máxima calidad y rendimiento. Diseñado para superar las expectativas más exigentes del mercado profesional.
