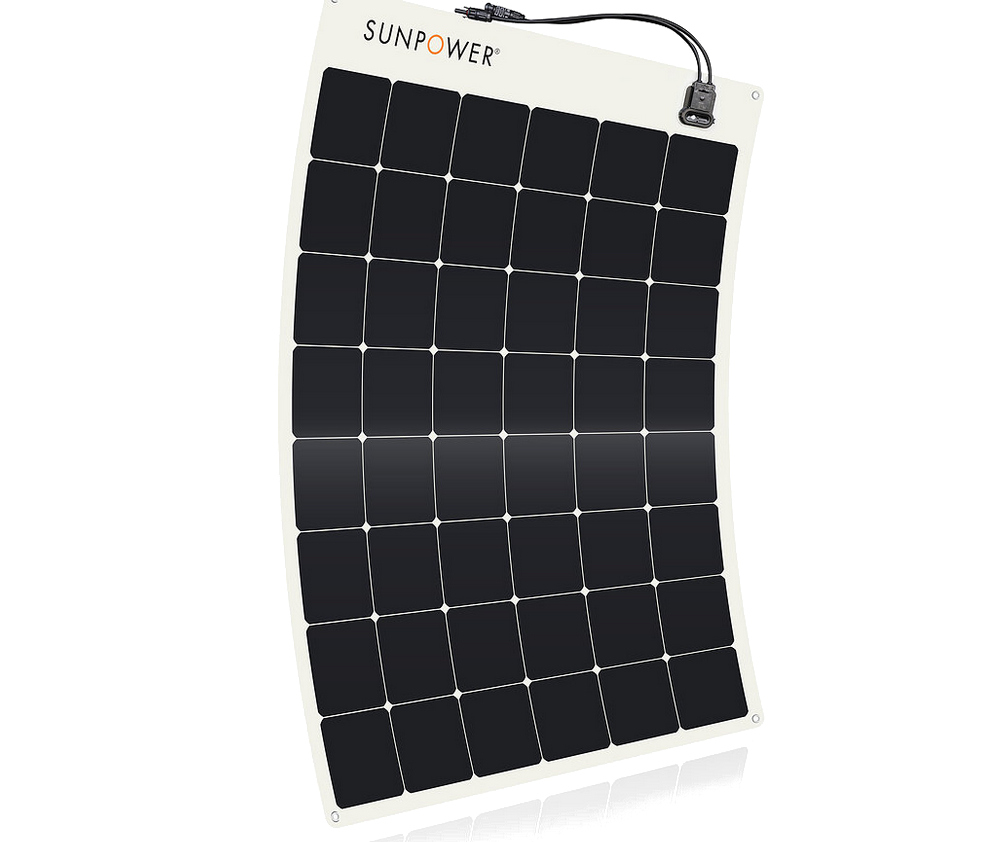

Panel solar semiflexible SPR-E-Flex-170W 6X8 (1153x810x2) High Eff 29,4V - SUNPOWER
[SOL0300] Panel solar semiflexible SPR-E-Flex-170W 6X8 (1153x810x2) High Eff 29,4V - SUNPOWER
Model SPR-E-Flex-170 6x8
Nominal Power(Pnom) 170 W
Power Tolerance +/–3%
Rated Voltage (Vmpp) 29.4 V
Rated Current (Impp) 5.84 A
Open-circuit voltage (Voc) 34.6 V
Short-curcuit current (Isc) 6.15 A
Power Temp Coeffiecient –0.30%/° C
Voltage Temp Coefficient –83.7 mV/° C
Current Temp Coefficient 3.5 mA/° C
Max. System Voltage 45 V
Series Fuse Rating 15 A
Solar Cells Prime monocrystalline
25% efficiency SunPower IBC cells
Junction Box TE 1-21-2152049-1 with by-pass diode
Connectors PV4-S (Compatible with MC4)
Cables 4 mm2 (0.16 in2), 12 AWG,
450 mm (17.7 in) long
Grommets 316 Stainless Steel
Charge Controller None provided
Weight 6.3 lbs (2.9 kg)
Panel
Dimensions
1153 x 810 x 20 mm with Jbox, 2 mm w/o Jbox
(45.4 x 31.9 x 0.8 in)
This product is no longer available.
Display Name:
[SOL0300] Panel solar semiflexible SPR-E-Flex-170W 6X8 (1153x810x2) High Eff 29,4V - SUNPOWER
Specifications
Tensió nominal | |
---|---|
Rated voltage (Vdc / Vac) | 12 |
Product information | |
---|---|
Cell type | Monocrystalline |
Old reference | SOL2014 |
Filtros de búsqueda | |
---|---|
Power (W) | 170 |
