  3. Solax Triple Power T58 5.8kWh HV Master V1 [BAT410] Solax Triple Power T58 5.8kWh HV Master V1

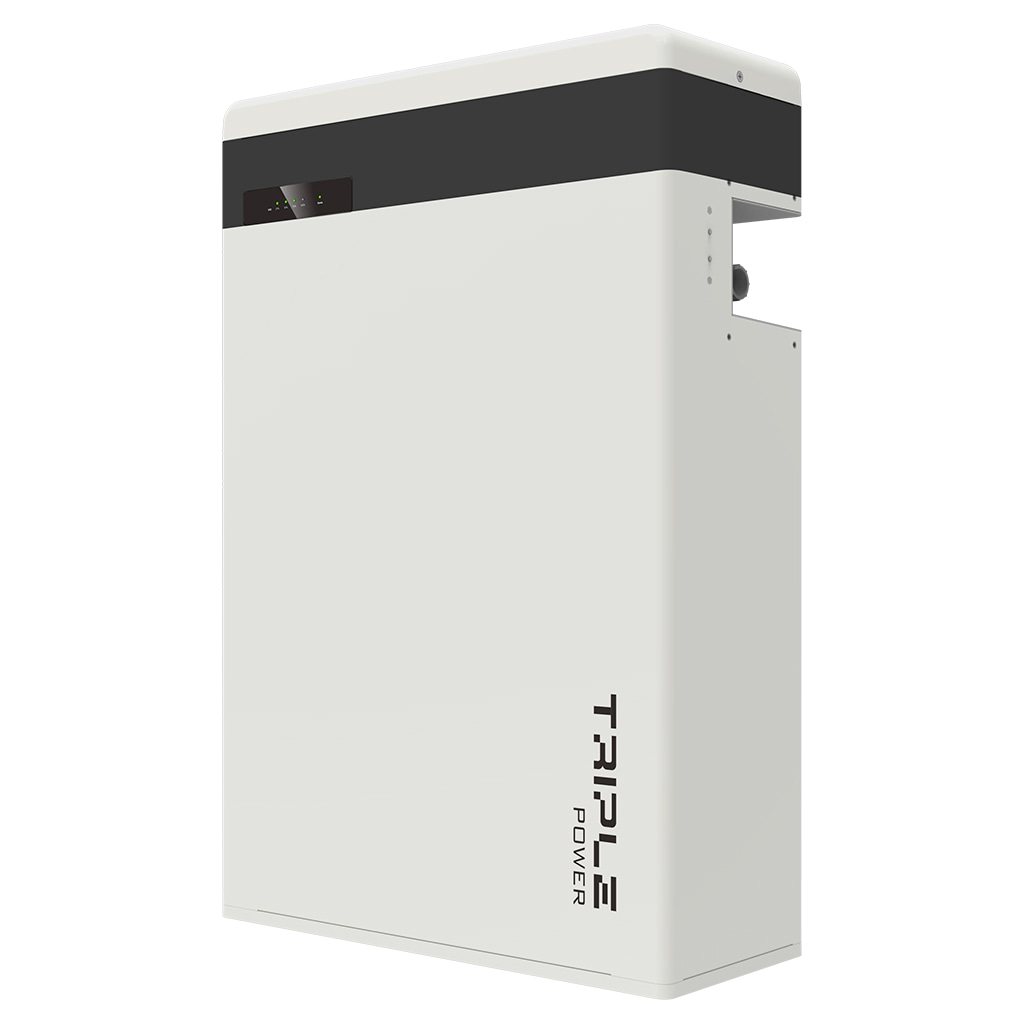

Solax Triple Power T58 5.8kWh HV Master V1

[BAT410] Solax Triple Power T58 5.8kWh HV Master V1

https://b2b.technosun.com/web/image/product.template/14392/image_1920?unique=7a4dd79

Batería de litio 5,8kWh | HV hasta 4 uds. en paralelo (23,2kWh)

3,876.00 € / Unit(s) 3876.0 EUR 3,876.00 € VAT Excluded

3,876.00 € VAT Excluded

4,689.96 € 4,689.96 € with taxes

Not Available For Sale

(3,876.00 € / Unit(s))
  • Rated voltage (Vdc / Vac)
  • IP protection grade
  • Life cycles
  • Maximum load/unload current (A)
  • Maximum output power (KW)
  • Power (W)
  • Energy storage capacity (kWh)
  • Communications
  • Warranty (Years)

This combination does not exist.

Sin existencias.
Correo electrónico inválido
Te avisaremos cuando el producto vuelva a estar disponible.
Contact Us

Términos y condiciones de venta

Display Name: [BAT410] Solax Triple Power T58 5.8kWh HV Master V1
HS Code: 85076000


T-BAT H 5.8

Triple Power 5,8kWh

Designed and manufactured in partnership with SolaX, Triple Power offers a NEW 5.8kWh model that can be installed in series with up to 4 batteries allowing 23.2kWh of storage. The new Triple Power encompasses the latest in LFP technology which ensures much safer installations with greater temperature tolerances. With a 10-year warranty and a 90% depth of discharge, the new Triple Power battery is a flexible, practical and high performance energy storage solution.
Translated with www.DeepL.com/Translator (free version)

Compatible with: X1-Hybrid, X1-Fit, X3-Hybrid, X3-Fit y X1-AC

  • The safest LiFePO4 battery

  • 90% DOD (depth of discharge)

  • Life cycle >6000 cycles

  • Protection level IP55

  • Floor or wall installation

  • Quick installation

  • No toxic heavy metals or caustic materials

Crea un sistema de hasta 8 baterías con el Triple Power Parallel BMS

Gracias al Triple Power Parallel BMS es posible crear un sistema de baterías Triple Power T58  de SolaX para conectar hasta ocho de ellas a los inversores SolaX Hybrid X1 y SolaX Hybrid X3. Descubre la Triple Power Parallel BMS en su página de producto.

Specifications:

Electrical values:

Nominal voltage [V] :115.2

Operating voltage [V] : 100-131

Battery type: Li-on (LFP)

Nominal capacity [kWh]: 5.8

Usable capacity [kWh] : 5.2

Faradic load efficiency [%] : 99

Efficiency of the return battery [%] : 95

Standard power [kW] : 2.9

Maximum power [kW] : 4.0

Recommended load current [A] : 25

Maximum load/unload current [A] : 35

Life cycle [90% DOD] : >6000 Cycles

Warranty [Year] : 10


Environmental:

Available operating temperature range [℃]: 0 to 55

Operating temperature range at full load [℃]: 5 to 48

Humidity [%]: 4 to 100 (condensation)

Altitude [m] below: 2000

Protection: IP55


Information and communication:

System to Inverter : CAN2.0

Battery to Battery/BMS : RS485

Data collection port /FW UPDATE: CAN2.0

Master control working mode indicator: 1 LED

Master Control Capacity Indicator: 4LED (25%, 50%, 75%, 100%)

LED battery module : 2 LEDs

Reset : Button

ON/OFF switch : Button*1 + switch*1


Certificates:

Safety: EC, RCM, TUV(IEC62619) UL1973,ROHS,REACH

UN number: UN3840

Classification of Hazardous Materials: Class 9

Transportation test requirement: UN38.3


Physics:

Dimensions (LxWxH) [mm]: 474*193*708 (T-BAT H 5.8) / 474*193*647 (HV11550)

Weight [kg]: 72.2 (T-BAT H 5.8) / 68.5 (HV11550)


*The Triple Power battery can be extended to 4 modules, for a total of 23.2kWh

Specifications

Tensió nominal
Rated voltage (Vdc / Vac) 115,2
General electrical specifications
IP protection grade IP55
Battery technical specifications
Life cycles 6000
Especificacions tècniques de l'inversor
Maximum load/unload current (A) 35
Maximum output power (KW) 4
Filtros de búsqueda
Power (W) 2000
Energy storage capacity (kWh) 5,8
Parametros de la batería
Communications CAN/RS485
Warranties
Warranty (Years) 10
