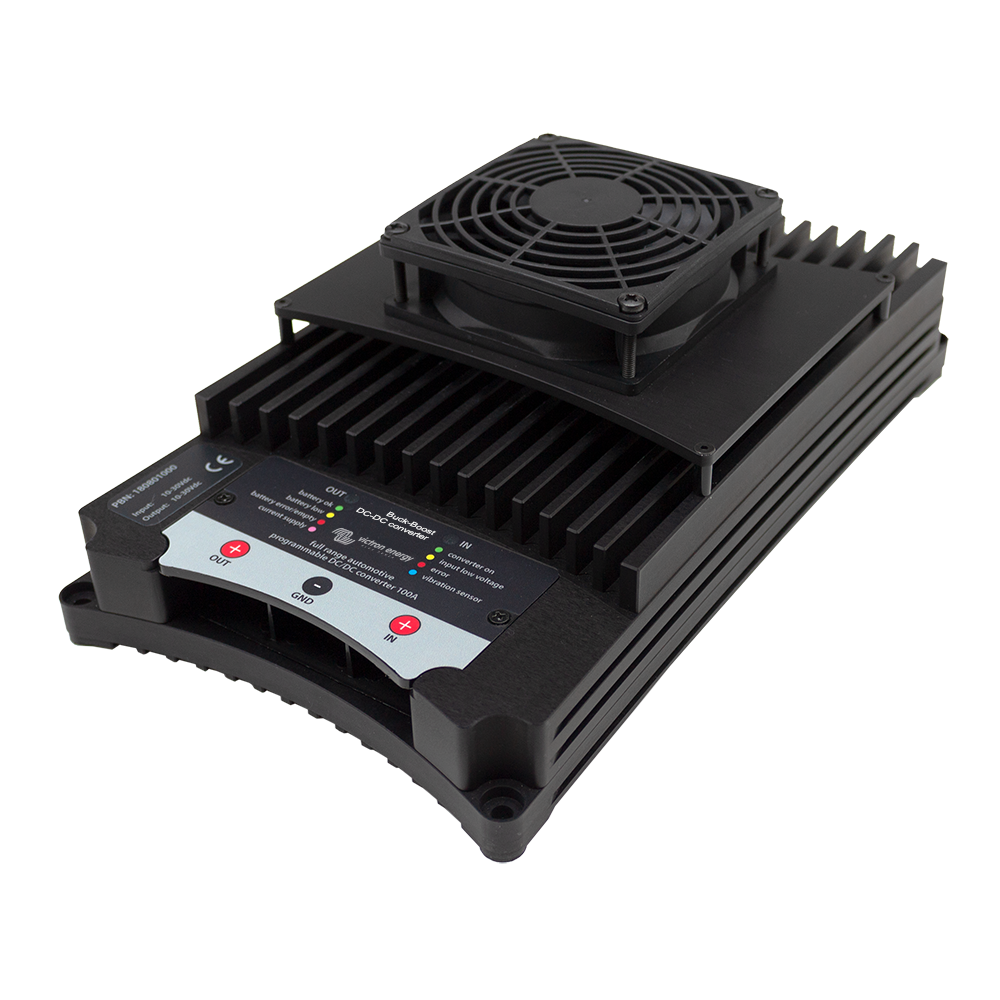

100A Buck-Boost DC/DC converter - VICTRON ENERGY

[ORI303100000] 100A Buck-Boost DC/DC converter - VICTRON ENERGY

DC-DC Converter for charging a 12V or 24V service battery in vehicles with a smart alternator
(regenerative braking, Euro 5 and Euro 6 engines)
The Buck-Boost DC-DC Converter is a DC-DC Converter for charging a 12V or 24V service battery in
vehicles with a smart alternator. The converter will charge the auxiliary battery with a pre-set charge
voltage, eliminating high voltages (e.g. Mercedes: 15,4V) and low voltages.
‘Engine running’ detection system
Deep discharge of the vehicle's starting battery is avoided by a built-in ‘engine running’ detection
system.
Instead of this detection system, the converter can also be activated by means of a programmable
input (D+, CAN bus or (+)15 connection).
Fully programmable
The converter can be fully programmed by means of a simple and user-friendly PC application.
(USB type A male to USB type B male cable needed)
One product for 12V, 24V and 12/24V systems
The converter can be programmed to charge a 12V or a 24V auxiliary battery from either a 12V or a
24V alternator and starter battery.
Charge current and input current limiter
The output current is determined by the following factors:
- The maximum charge current setting.
- The maximum input current setting.
- The maximum operating temperature limit of the converter

Display Name: [ORI303100000] 100A Buck-Boost DC/DC converter - VICTRON ENERGY
HS Code: 85044095
